Compact, yet capable
Perfect for handling larger, more unique projects while maintaining a compact, bench-top design. This versatile lathe boasts numerous features, including a multi-position extension bed, reverse operation capability, a high-torque 1,100W motor, and more for all your turning needs.
Buy with confidence
Look for the icon and put your trust in Axminster Tools. You’ll get our comprehensive 3 Year Guarantee. Find out more

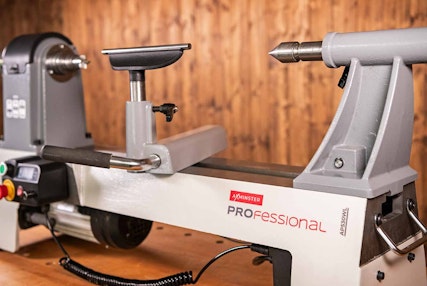

Heavy cast iron construction
The cast iron construction ensures stability and reliability, whilst helping to reduce vibration.

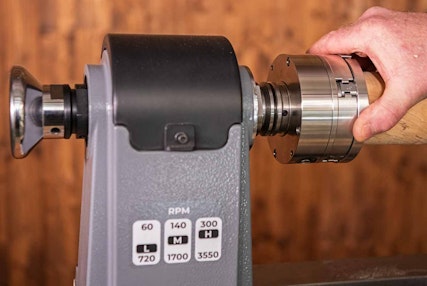

M33 x 3.5mm ASR safety spindleÂ
The M33 x 3.5mm ASR safety spindle allows the work to be held safely if using the lathe in reverse.

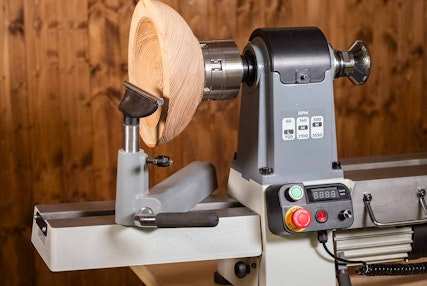

Inboard & outboard turning
The lathe enables turning inboard and outboard of the headstock, allowing for large and unusual shaped timber to be used.

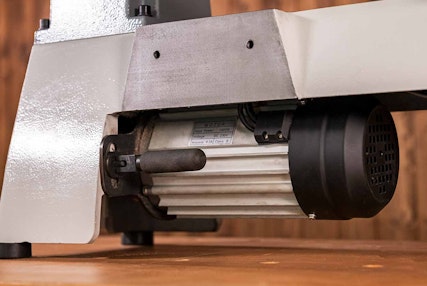

Motor
A high torque 1,100W brushless motor with electronic speed control gives plenty of power for larger projects.

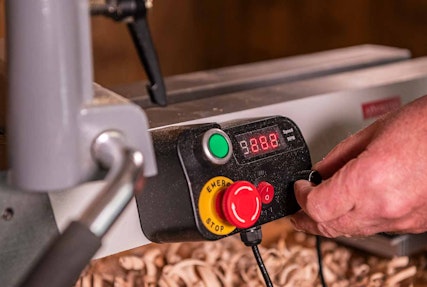

LED digital speed read-out
An LED digital read-out of the spindle speed in RPM makes it easier to stay in control of your work.
Magnetic switch box
The magnetic switch box allows you to position the switches in the most convenient position for you for more control.

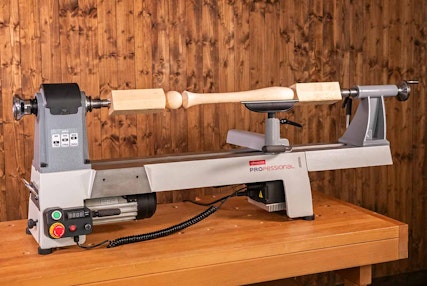

Multi positional extension bed
The optional bed extension can be positioned either at the front or end of the bed, offering extra versatility for turning exceptionally large or unusually shaped workpieces.

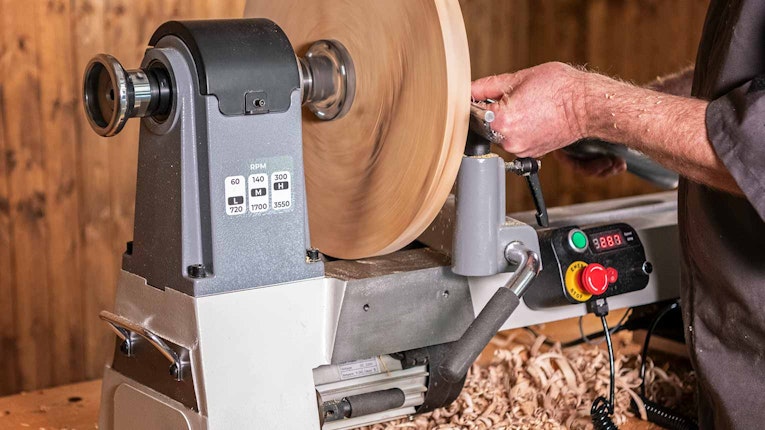

The Axminster Professional AP530WL Woodturning Bench Lathe is the perfect lathe for using in the workshop, or for attending shows and demos due to its compact size. The electronic variable speed enables fine tuning of speed to suit delicate work, larger diameters or out of balance pieces, with speed ranging from 60 - 3550 rpm. The Pulse Width Modulation brushless high torque motor will drive the largest of projects, whilst the two stage pulley reduces any torque lost.
The magnetic back switch unit can be placed in any convenient position on the lathe bed or headstock to suit the work in hand. It incorporates on/off buttons, a speed control knob and forward and reverse switch. The LED digital read-out of the spindle speed gives you complete control. The AP530WL has a generous capacity of 535mm, with 460mm between centres, and 368mm swing over the bed. It has a 458mm bowl capacity. Spindle features 24 division indexing. Quick and straightforward adjustment of the drive belt can be made, meaning less time is spent on maintenance.
The AP530WL features a robust cast iron build whereby vibration is virtually undetectable. Outboard turning is available to suit much larger projects. The lathe offers multiple extension bed positions enabling turning inboard and outboard of the headstock, as well as right angles to the bed allowing for large and unusual shaped timber to be used. It also features a heavy duty banjo of a good size.
The lathe features an M33 x 3.5mm ASR spindle. All standard M33 x 3.5mm threaded chucks and fitments can be used as normal. The ASR spindle includes a safety groove. This is an additional safety feature designed to be used in conjunction with fitment with a matching ASR safety groove and a locking ring. This arrangement ensures complete safety when the lathe is running in reverse and is not necessary for general turning.
This bench mounted lathe is ideal for the workshop, or craft demonstrations due to its smaller size, yet large capabilities. A 300mm bed extension is available as an optional extra and this can be bolted to either end of the lathe bed.
Supplied with Axminster Woodturning drive and tailstock centres.
Look for the icon and put your trust in Axminster Tools. You’ll get our comprehensive 3-year guarantee on all Axminster Professional machines, which includes:
Year 1 – complete machinery coverage. (Excluding blades, abrasives, belts, filters/bags, other consumables.)
Year 2 & 3 – as above, also excluding bearings and tyres.
Machine Classifcation
These products are designed and intended to be used by businesses with occasional periods of continuous work. They must be regularly maintained and serviced annually. Guarantee is void when used for industrial use or as part of a production line.
