Axminster Workshop No. 5 Bedrock Jack Plane

110625
From £124.98 £104.15
  1. Full Star
  2. Full Star
  3. Full Star
  4. Full Star
  5. Full Star

5 Reviews

Go to reviews
In Stock - Ready to dispatch

Delivery Premium
Next Day Delivery from £8*.
Order within for delivery by Tuesday 18th Feb
*UK Mainland only. Additional charges may apply for remote or offshore areas.
Click & Collect
Click & Collect in-store

Key Features

  • Designed for stock removal and squaring
  • Good length for flattening and squaring edges
  • Smooth, rounded and well sized hardwood handles
  • Bedrock design for enhanced stability
  • 'Jack' of all planing jobs
  • Flat, ground sole for smooth, even surfaces
  • 350mm long with a 50mm (2") wide blade
  • View full description

Customers Also Viewed

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Particularly versatile...

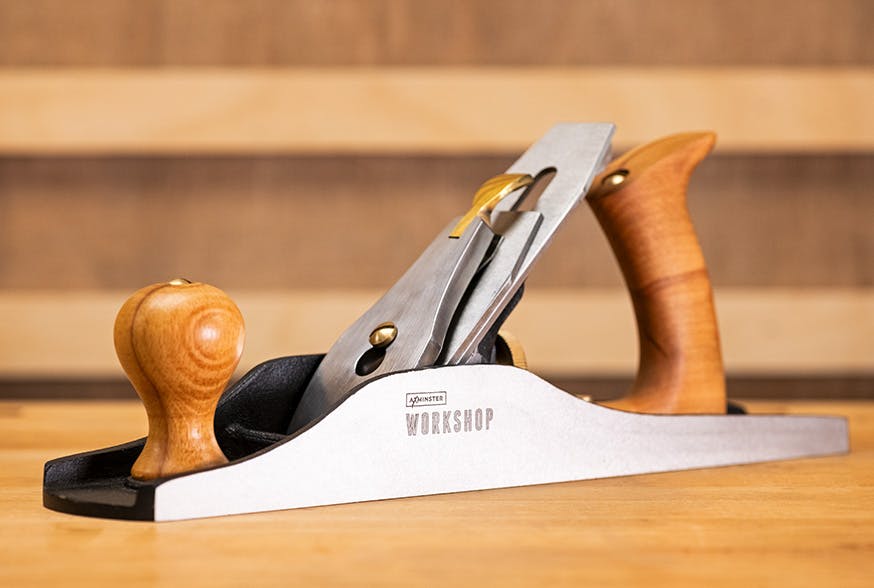

The No.5 Bedrock Jack Plane is an all-purpose hand plane, ideal for initial rough timber prep, smoothing and levelling.

Blade

The cryogenically treated, high carbon steel blade with 25° bevel provides excellent edge retention.

Chip breaker

The design of the chip breaker reduces vibration when plane is in use.

Body

Ductile iron body, with a flat ground sole, hardwood tote and handle. The weight of the body ensures the plane will glide smoothly when planing.

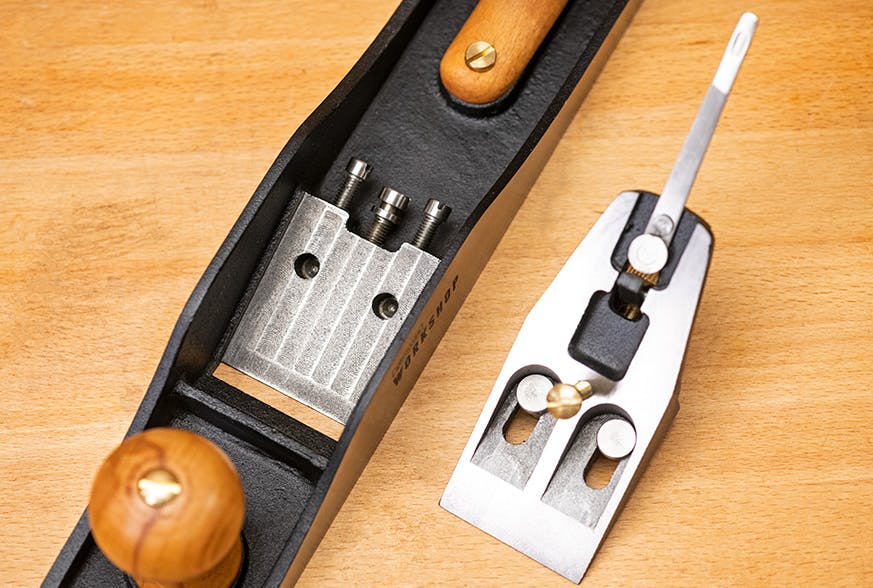

Frog

Adjustable frog – close the plane’s mouth for fine work. Without removal of the iron, the frog can be adjusted to widen or narrow the mouth of the plane for increased control and fine tuning. This bedrock design ensures for maximum stability for the iron, resulting in less blade chatter.

Y-lever

The Y-lever design prevents backlash and helps with micro blade adjustments.

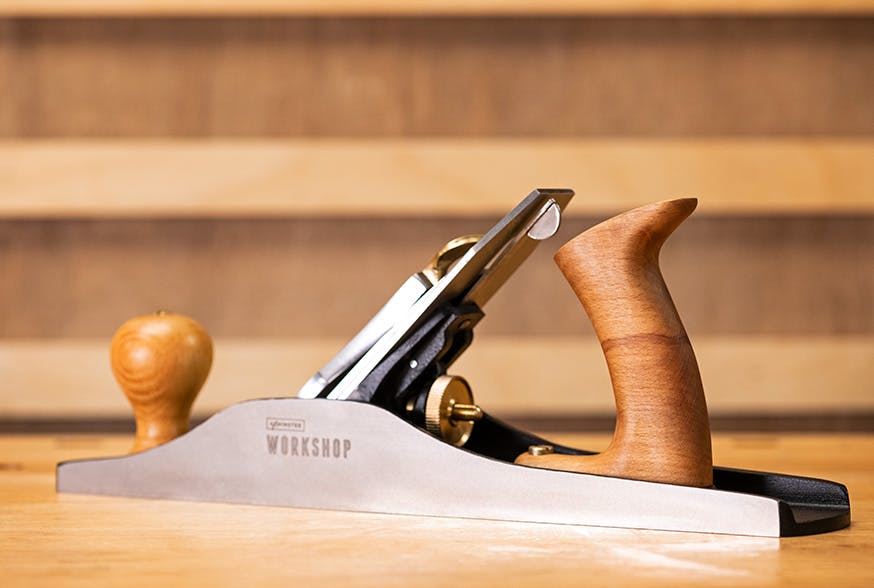

Comfort

Hardwood tote and handle ensure the plane feels comfortable and sturdy in your hand.

Cap iron

The lever cap iron prevents shaving or tear out.

Lateral adjuster

The ‘disc’ style lateral adjuster helps with micro blade adjustments and ensures the plane is level, offering uniform planings every time.

Frequently Bought Together

  1. Axminster Workshop No. 5 Bedrock Jack Plane
Total:
£414.92 £345.77

Axminster Workshop planes represent great value for home or professional use; whether in a workshop or out on site. The Axminster Workshop No.5 Bedrock Jack Plane is a versatile, all-purpose hand plane that is good to put to rough sawn timber to begin sizing and smoothing, as well as truing up long edges or levelling wide boards. It is long enough to produce a flat surface, and at the same time not too heavy.

The blade is cryogenically treated high carbon, offering excellent edge retention. It comes with 25° bevel. The blade only requires honing before use (putting a 30° micro bevel on the edge can be done in less than a minute).

The plane's main body is ductile grey iron with a flat ground sole. The weight of the body allows the plane to glide smoothly, even through rough timber. It features an adjustable frog allowing you to close the plane's mouth for finer work. The 'Y' level that helps control the depth is an investment casting for better engagement with the blade. The lateral blade control lever is the traditional 'disc' type rather than simple piece bent metal. The plane has a lever cap iron and solid brass adjusting nut. The handle is made from hardwood.

The bedrock design ensures for maximum stability and support for the cutting iron, resulting in less blade chatter. There is a full contact area between the body and the frog. Without removal of the iron, the frog can be adjusted to widen or narrow the mouth of the plane. This ensures for easier and more accurate adjustment to the mouth opening without damaging the cutting iron, for increased control and fine-tuning.

Axminster Workshop planes are made to a good standard and quality and only require a minimum of initial preparation or fettling before your first thin shaving. The sole of the No.5 is 350mm long, the blade is 50mm (2") wide.
