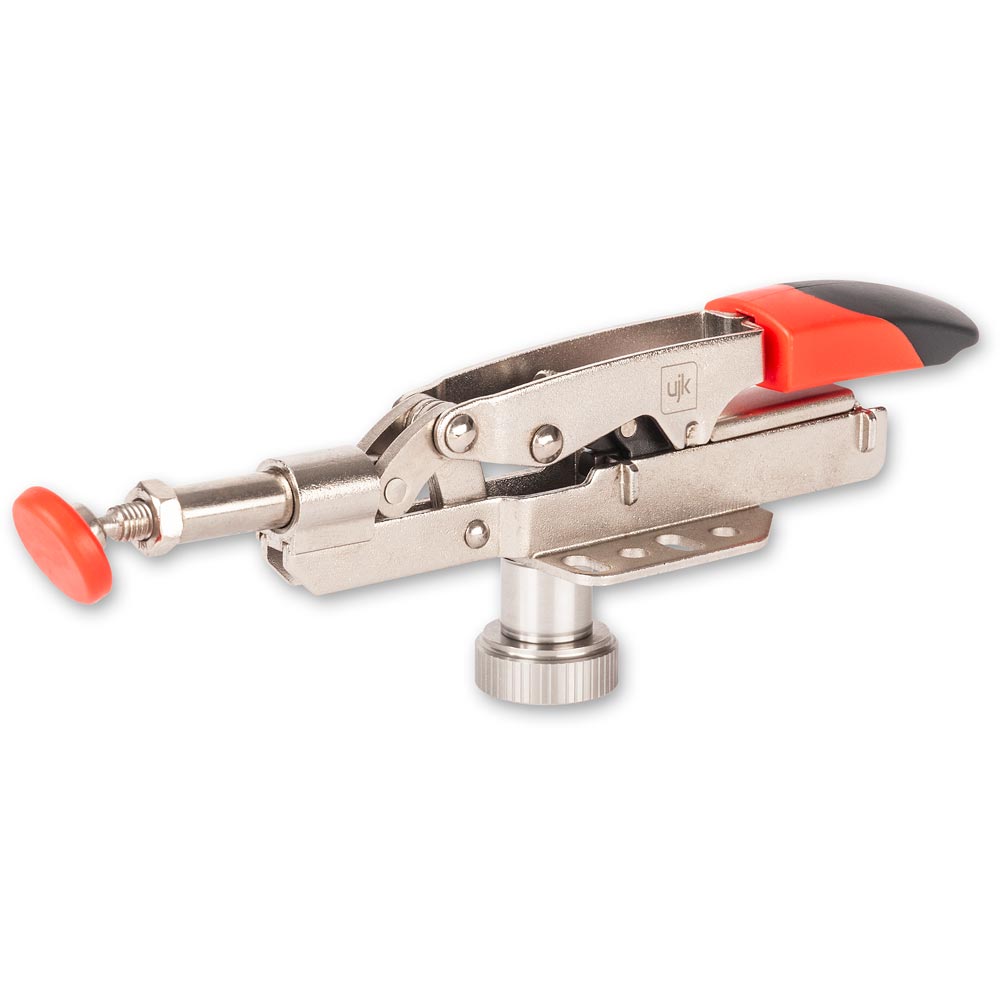

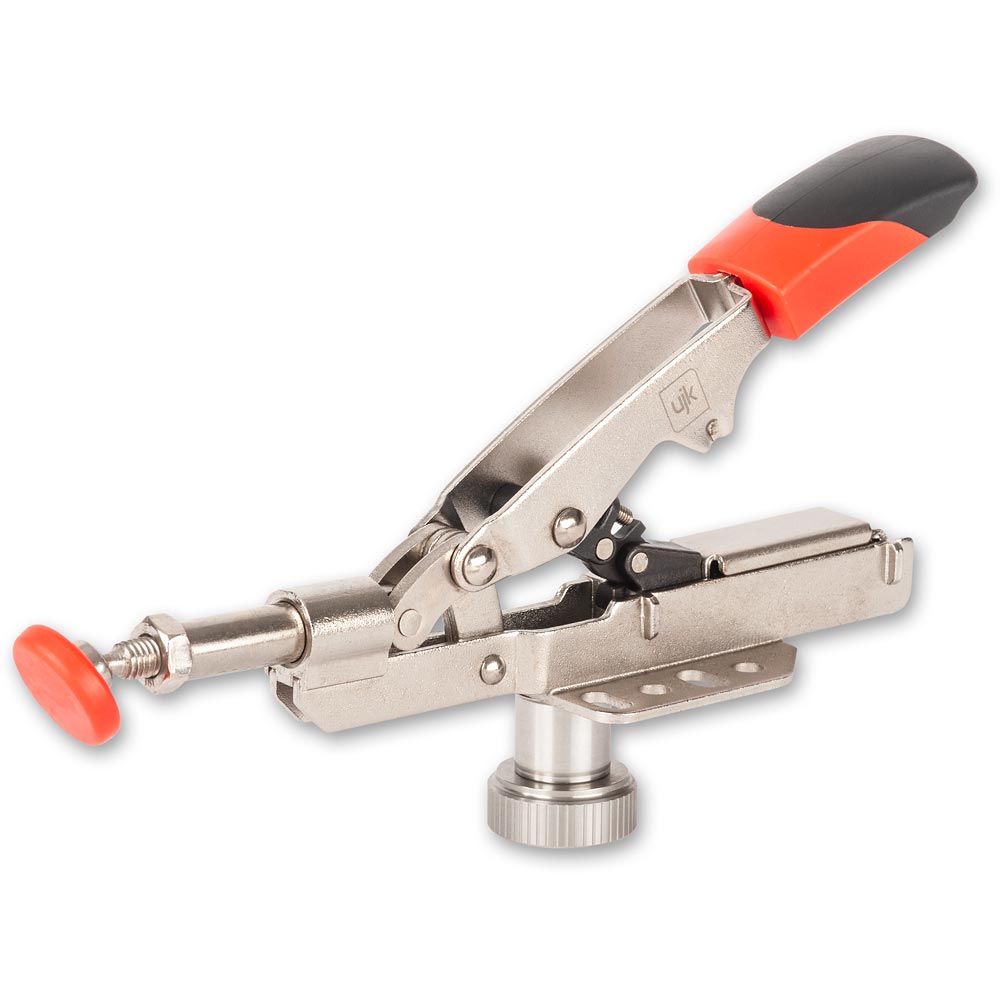

The UJK Self Adjusting Toggle Clamp Push/Pull 25 is available in a package with a M8 UJK Parf Anchor Dogs and M8 T-Slot Bolt, allowing you to utilise the strength of the clamps with a MFT style bench.
Simply fit the anchor dog into the 20mm workbench hole, attach the UJK Self Adjusting Toggle Clamp to the UJK Anchor Dog with an M8 T Slot Bolt for the ultimate strength and accessibility for your clamping needs.
Industrial quality self-adjusting push/pull toggle clamp converts the movement of the handle into an axial movement of the piston. The piston pushes a workpiece against a fence or stops and locks with the handle in the horizontal position. For example as used on most pocket-hole jig systems. The piston has 25mm of travel and automatically adjusts to variations in workpiece thickness. The piston centre height is 23mm. A set-screw, on the cantilevered joint, adjusts the clamping force to your particular needs up to 3,000N.
The piston has an internal thread with an extension for manual length adjustment. The wide injection moulded handle has a soft grip insert, which makes setting the clamp a comfortable operation. Made from quality steel, galvanised and passivated against corrosion.
