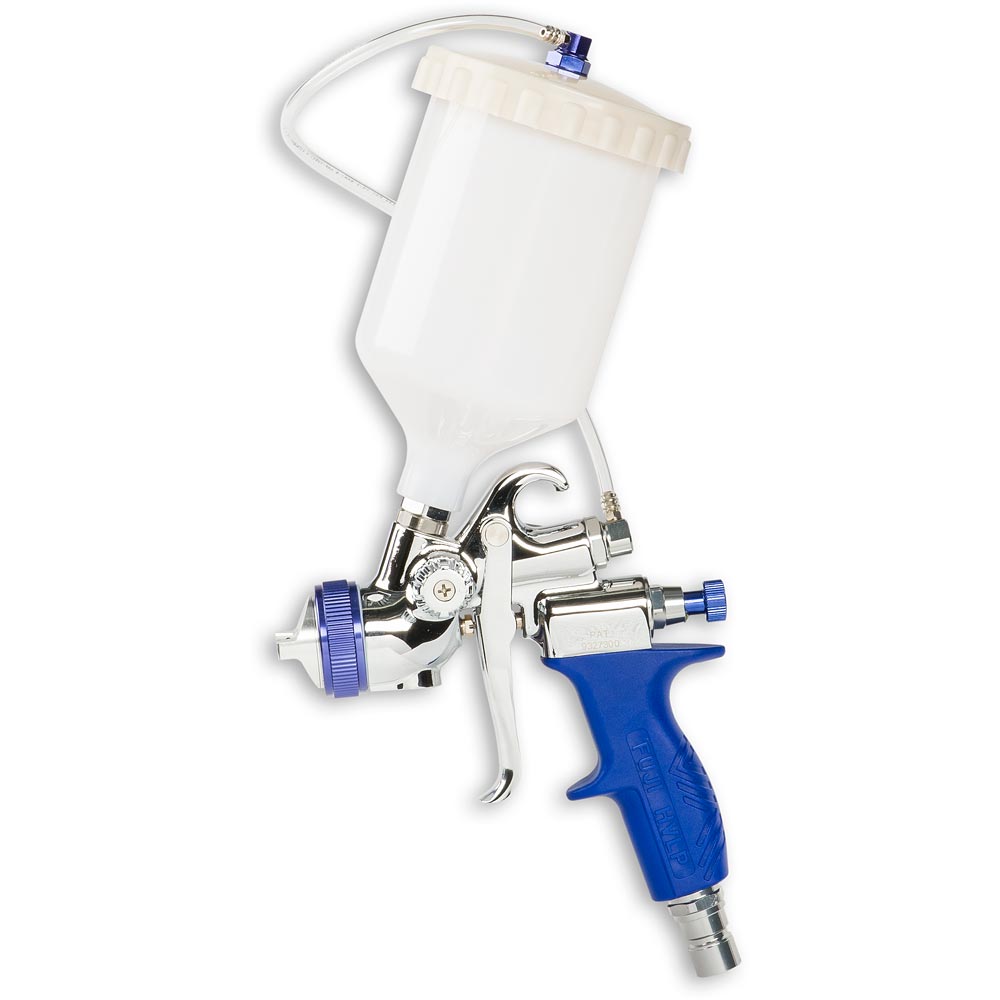

The Fuji Spray T-Series Spray Gun features an exclusive side-mounted pattern control knob to adjust the size of the fan. This knob allows you to switch from a small to large pattern, or anywhere in between. Unlike HVLP turbine spray guns with the front collar adjustment, the pattern control knob offers full incremental fan size throughout the whole range. The fan pattern is adjustable from 25mm to 380mm from a distance of 200mm. Smaller than 25mm is achieved by moving closer to the object to be sprayed. All T-Series Spray Guns are installed with a 1.3mm needle and nozzle set-up. You can obtain a professional finish with all known coatings. The gun body is CNC machined to aircraft tolerances. All Fuji spray guns are non-bleed. Air passes through the spray gun only when the trigger is pulled. The light weight of the T-Series and easy-pull trigger means less fatigue for the operator. The T-75 Gravity Gun is assembled with a 600cc Nylon Cup, which provides a perfect seal, with no gasket required.
It is essential equipment is cleaned after every job and operating instructions are followed. Failure to do so will void warranty
