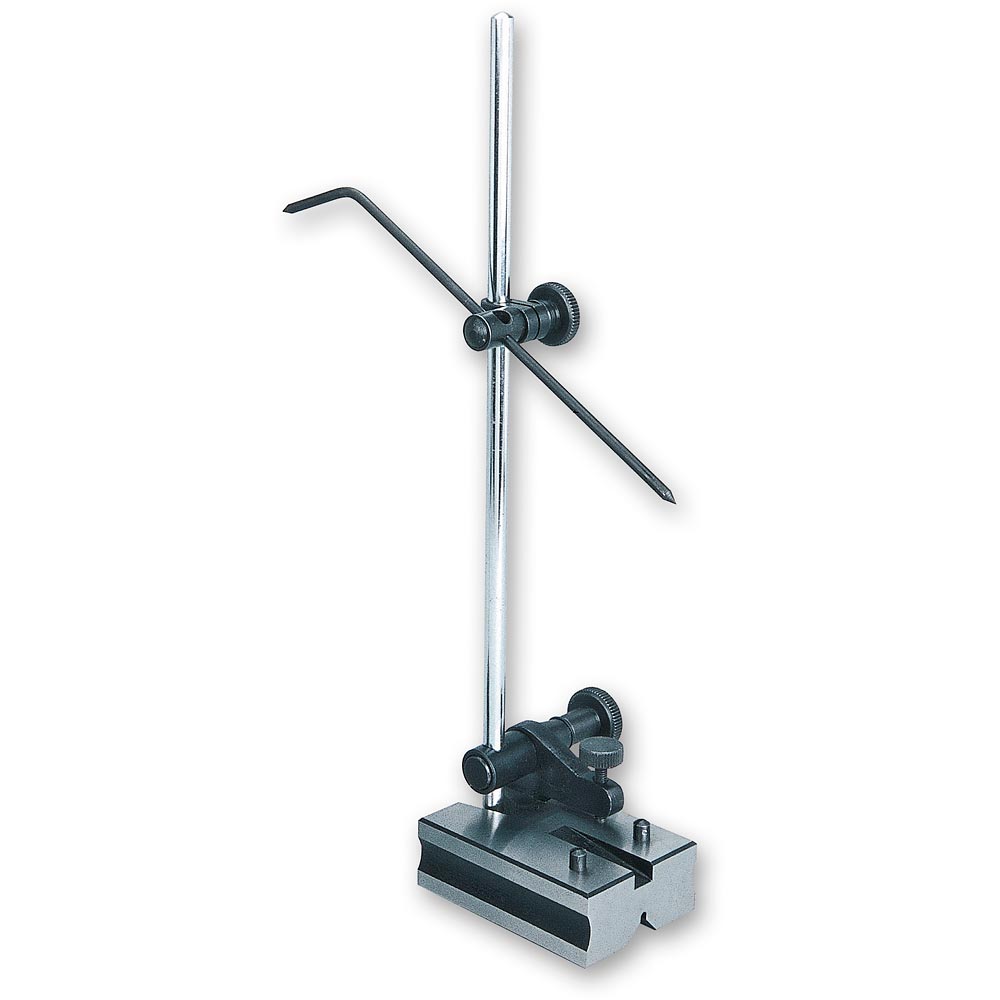

Axminster Engineer Series Scriber Block

    Axminster

    Axminster Engineer Series Scriber Block

    220091
    £23.18
    £19.32 Excl. VAT
    Shipping calculated at checkout.
    Pre-order Coming soon Out of stock |

    In Stock - Ready for dispatch
    Quantity

    Easy Returns within 30 days.

    Order in

    £3.98 Standard Delivery within 2-3 working days*. Free delivery over £100.

     *UK Mainland only. Additional charges may apply for remote or offshore areas.

    Key Features
    • A fully hardened and ground base which serves as an accurate reference surface
    • A machined Vee groove in the base allows the gauge to be used conveniently on curved surfaces
    • A Vee groove at the front end allows the spindle to adjust to any angle above or below the base allowing it to be used as a height and also as a depth gauge.
    • Two retractable pins allow the gauge to be located against the edge of a surface plate or T-slot for linear work
    • A 1/4 (6.35 mm) hole in the spring loaded scriber holder allows a dial indicator to be attached conveniently making the gauge useful for checking flatness, parallelism, heights, depths etc.
    • Grooves on the side of the base allow for comfortable grip.
    • Well tapered scriber for better sighting while working. The scriber tip is hardened to 55-60 HRC.

    Base dimensions 80 x 63mm, spindle length 300mm, scriber length 175mm. A basic tool for machinists and toolmakers, it is used for accurately scribing lines, transferring measurements or probing surfaces in inspection work. A fully hardened and ground base serves as an accurate reference surface. A machined Vee groove in the base allows the gauge to be used on curved surfaces. A Vee groove at the front end lets the spindle adjust to any angle above or below the base, allowing it to be used both as a height gauge and a depth gauge. Two retractable pins allow the gauge to be located against the edge of a surface plate or T-slot for linear work. A 1/4 (6.35 mm) hole in the spring loaded scriber holder allows a dial indicator to be attached for checking flatness, parallelism, heights, depths etc. Grooves on the side of the base give a comfortable grip. Well tapered scriber for better sighting while working. The scriber is hardened to RC55-60 and is tapered for a good view of the work.

    This option
    Affiliate Category AFCAT001
    Web Attribute Set Scribers
    EAN Barcode 8901486032016
