HVLP turbines supply air at a much lower velocity producing a softer, easier-to-control spray. This allows you to lay the paint on gently and not blast it on. The benefits of HVLP include less overspray and less paint wastage. Transfer efficiency can be as high as 85%. The quality of finish is identical to the best high pressure spray finishes.
The Q5 Platinum Turbine with its powerful 5-stage motor produces approximately 9.5psi. This extra power allows for less thinning of viscous paints and achieves finer atomisation. The Q5 utilises the same patented noise reduction seen in Fuji’s other Q models. The result is the quietest 5-stage HVLP turbine on the market.
The Q5 features a proprietary Heat Dissipation Box (HDB). The HDB expels excess heat from the turbine resulting in much cooler operating temperatures. Because the hot air passes through 60 holes at the rear of the turbine, the process is silent.
Another key feature is a Master Speed Control to offer you the ability to adjust the psi/cfm to the optimum needed to perfectly atomise your coating and still reduce the overspray/bounceback to an absolute minimum.

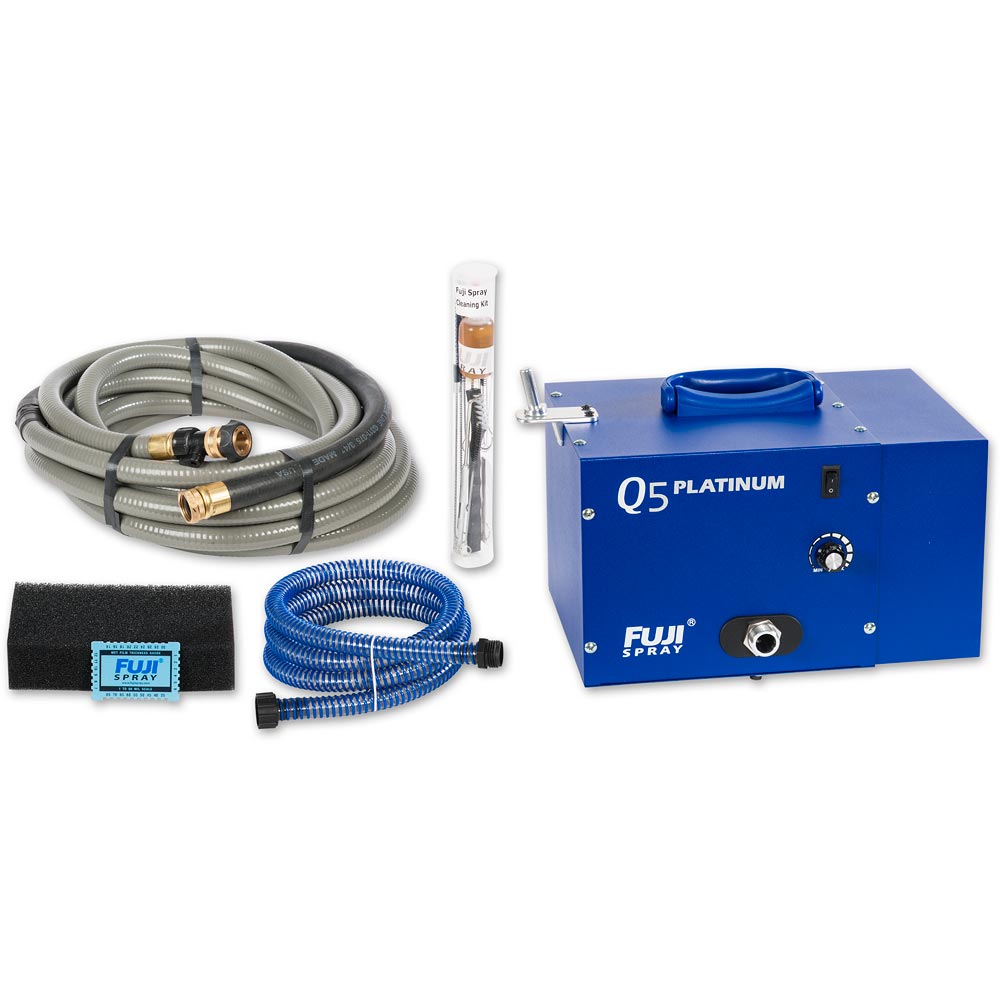

Supplied with a 30ft Super Duty Hose, manual and ‘5 for 5 Bonus Kit’. The ‘5 for 5 Bonus Kit’ special accessory package comprises a 1,800mm whip hose, wet film gauge, 19 piece spray gun cleaning kit and extra turbine filters. The Super Duty Hose is an ultra durable hose made in North America. It features 27ft of reinforced air hose attached to a 3ft selection of heat hose. Suitable for running through a spray booth wall. It features a plastic collar at the turbine hose connection to make installing and removing the hose hassle free.

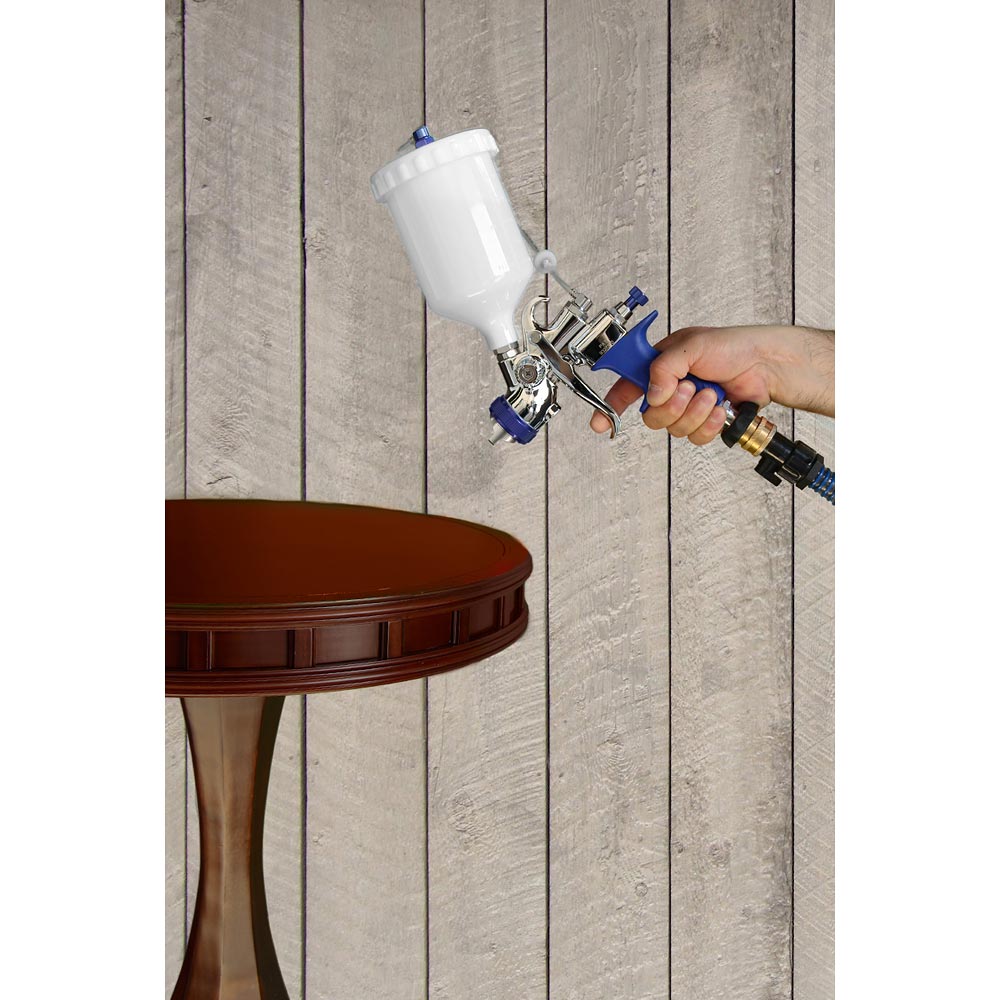

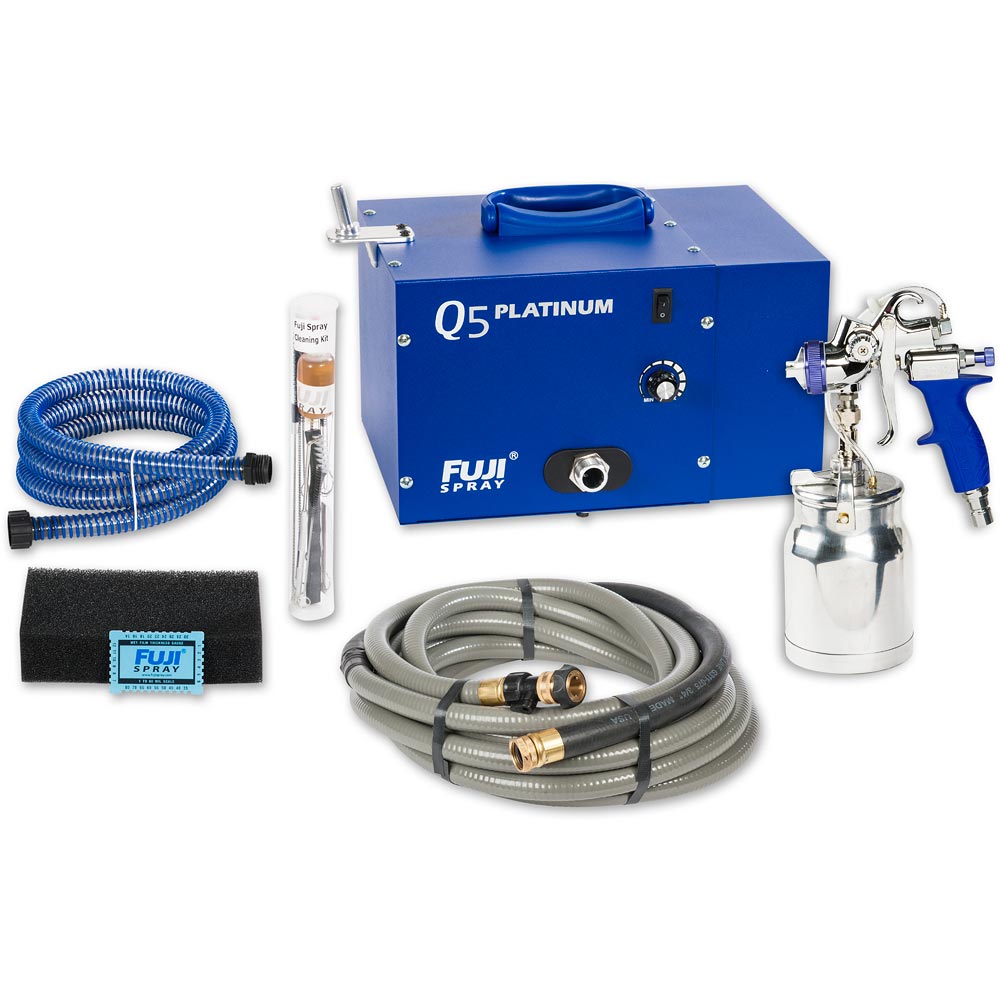

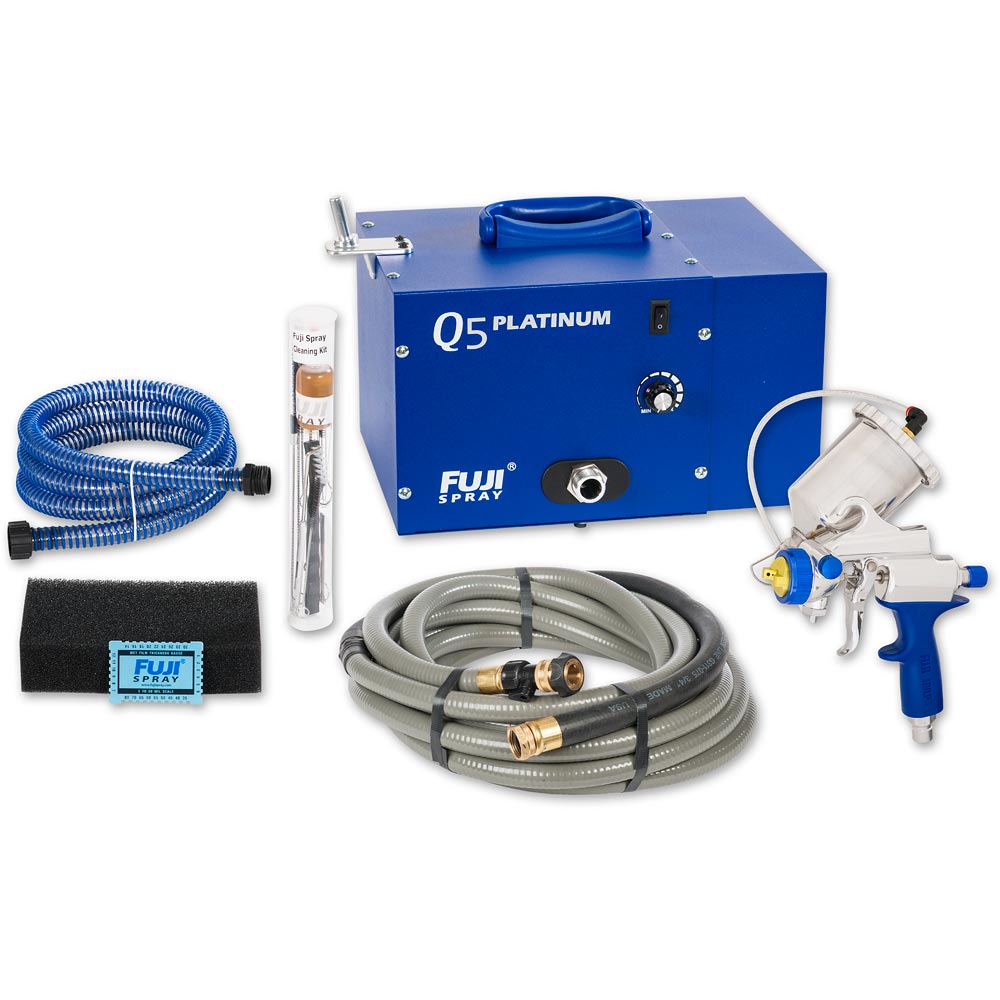

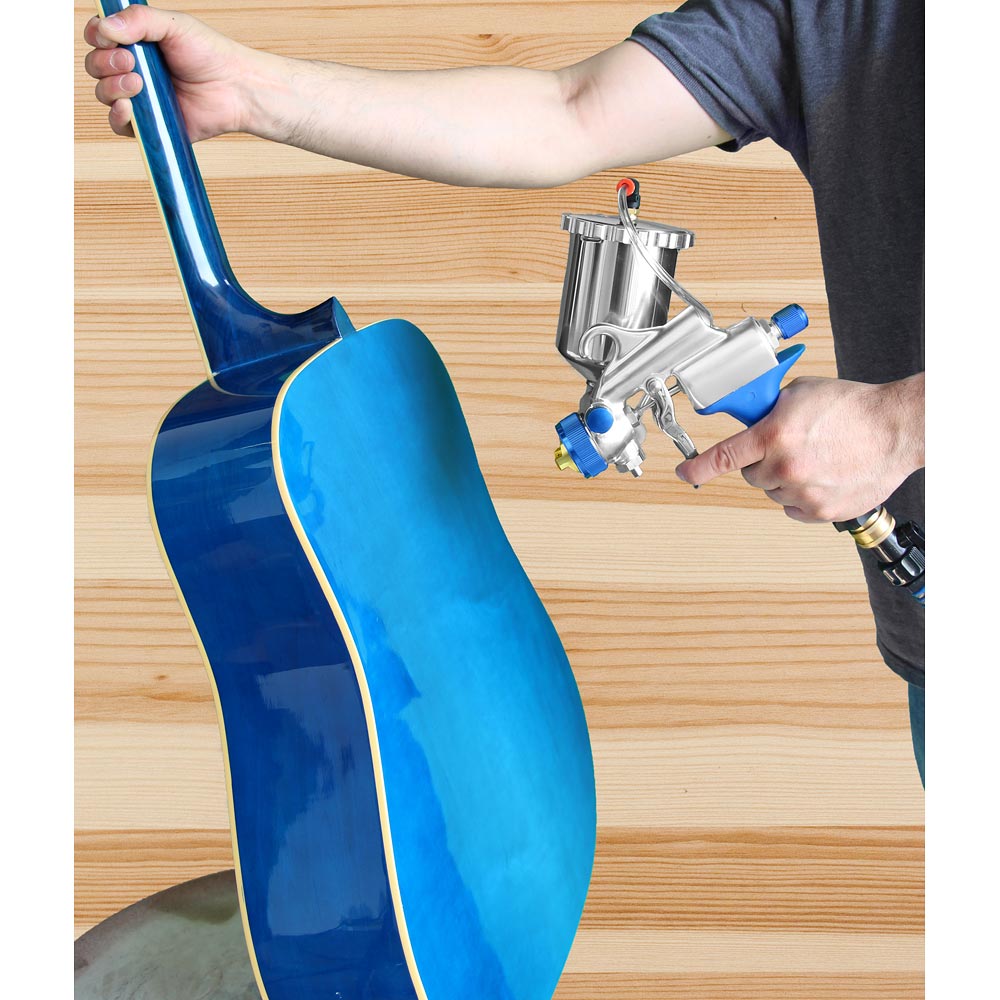

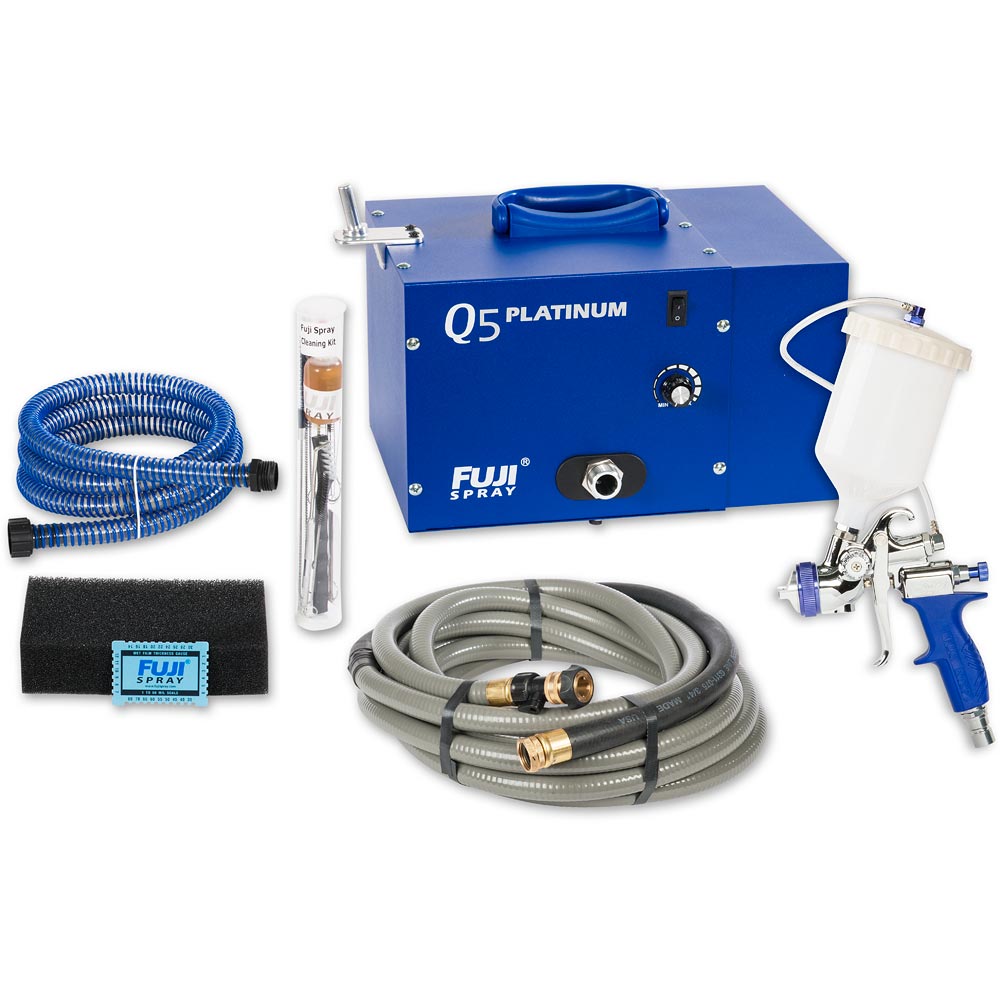

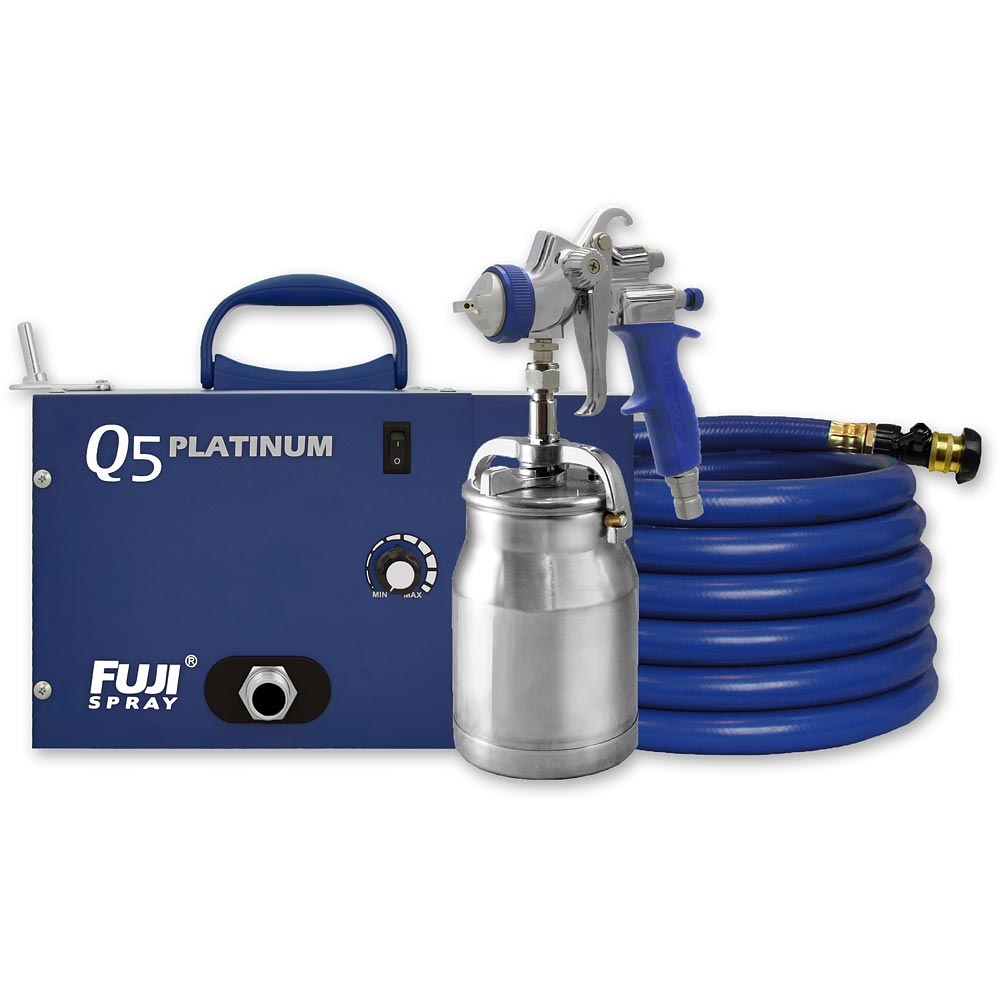

It is available as the turbine only, or with one of three spray gun configurations to suit different needs. The T75G comes with a standard 600cc top-mounted gravity cup and features a non-bleed design, a side-mounted pattern control knob for easy fan size adjustment, and continuous positive pressure during spraying. The T70 includes a large 900cc bottom-fed fluid cup and shares the same non-bleed design and side-mounted pattern control for consistent, smooth application. For more detailed work and tight spaces, the G-XPC™ spray gun offers a compact, lightweight body with a 400cc gravity-fed cup, an ergonomic angled design for better balance, and a side-mounted pattern control knob. Its non-bleed operation ensures cleaner results with reduced overspray.
It is essential equipment is cleaned after every job and operating instructions are followed. Failure to do so will void warranty
