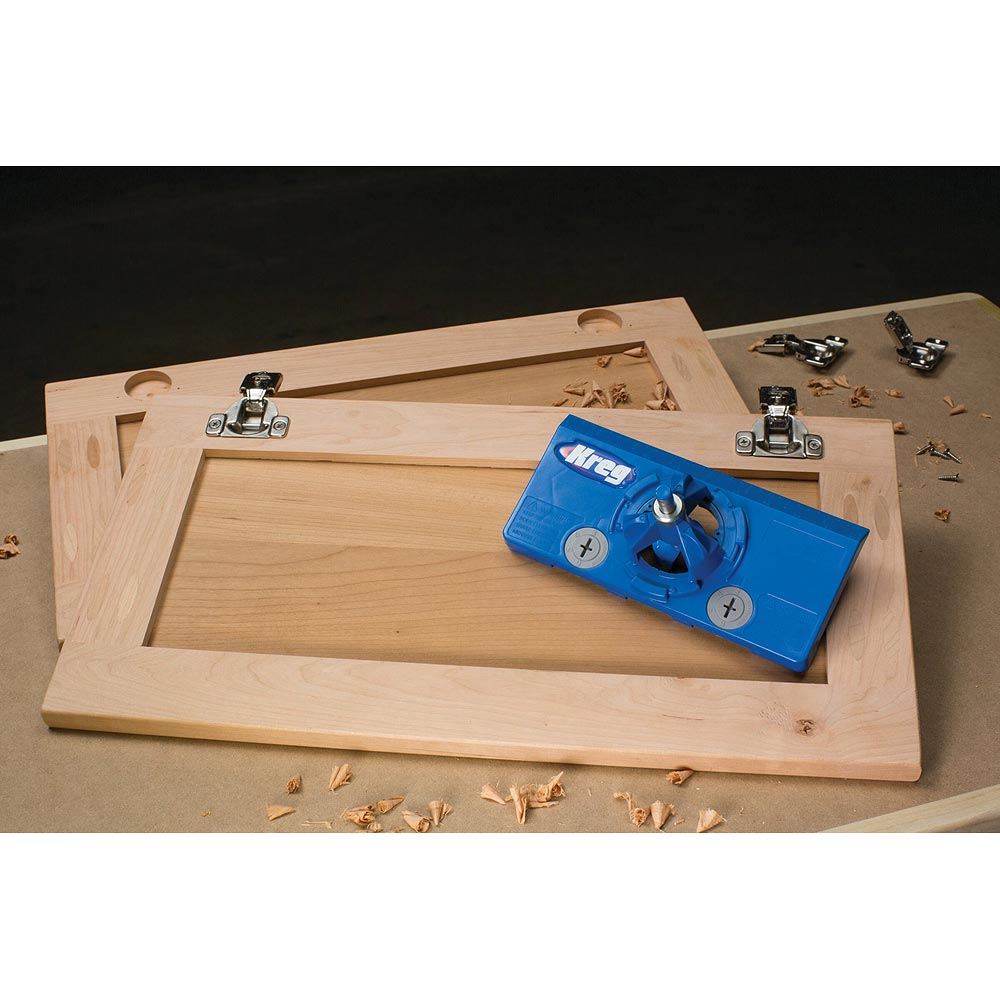

Install cabinet doors quickly and accurately with the Kreg Concealed Hinge Jig. Designed for concealed (Euro) hinges, it ensures perfectly aligned cup holes at the correct depth using a standard drill and the included carbide-tipped bit. Concealed hinges are excellent for mounting cabinet doors as they're subtle and adjustable. This jig removes guesswork, so doors fit smoothly and operate perfectly.

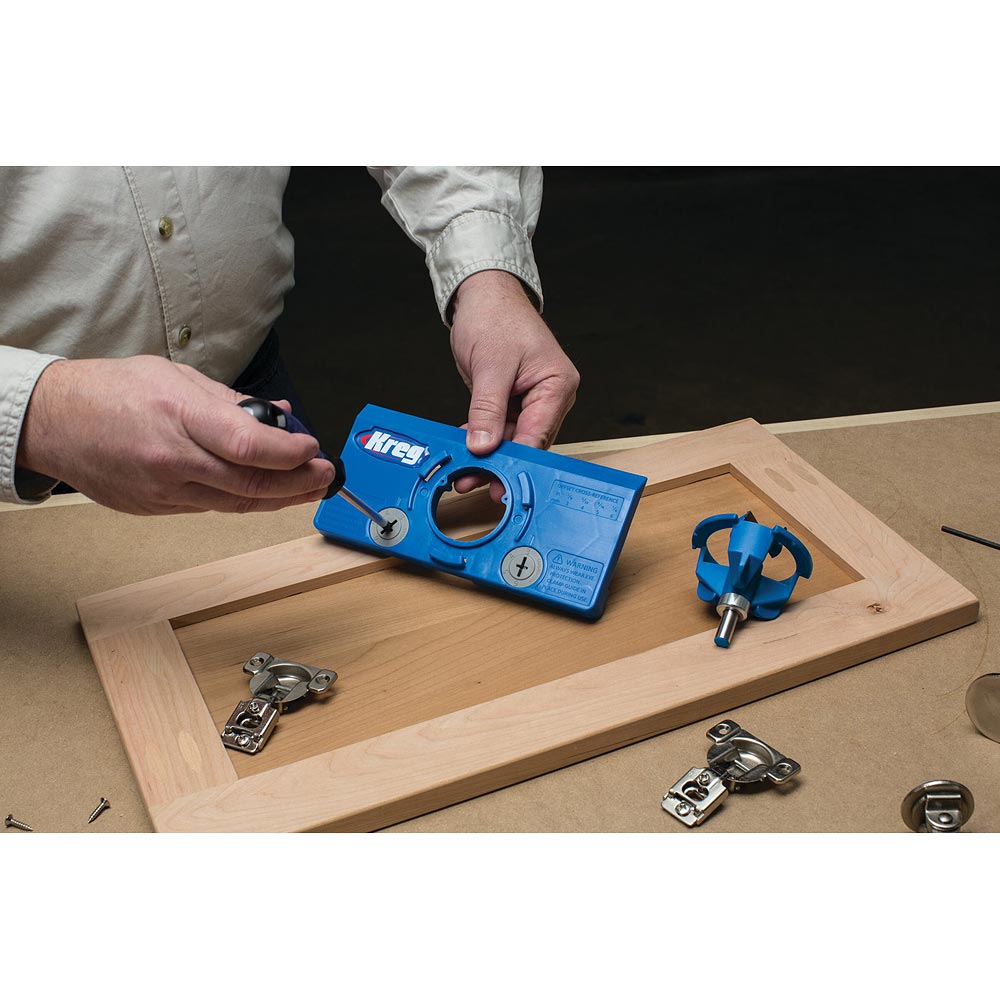

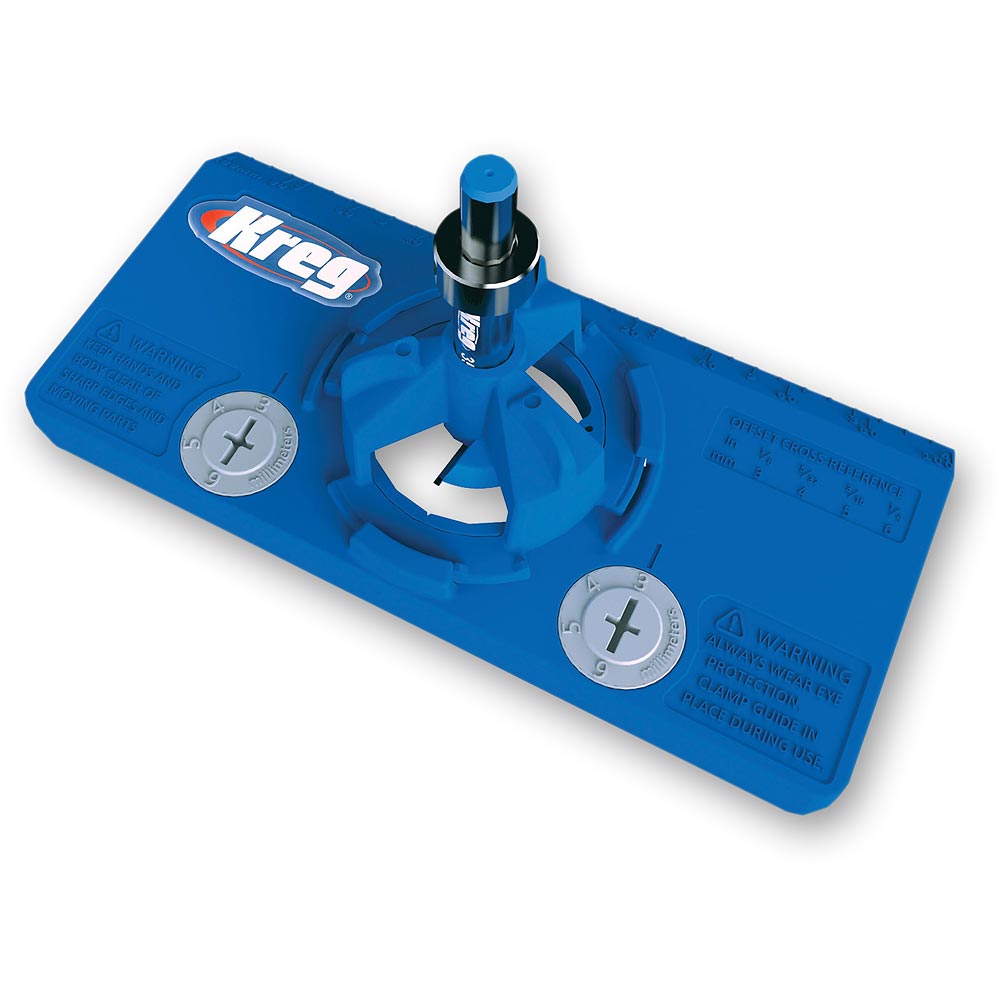

Built from durable glass-filled nylon, the hinge jig positions the carbide-tipped bit correctly, plus, features indexing cams that position the bit to the exact hinge offset. Adjust the indexing cams according to your required offset. The built-in stop collar guarantees consistent cup depth every time. Extra guide holes make drilling hinge-mounting screws simple and accurate (1/16″ bit required, not included).

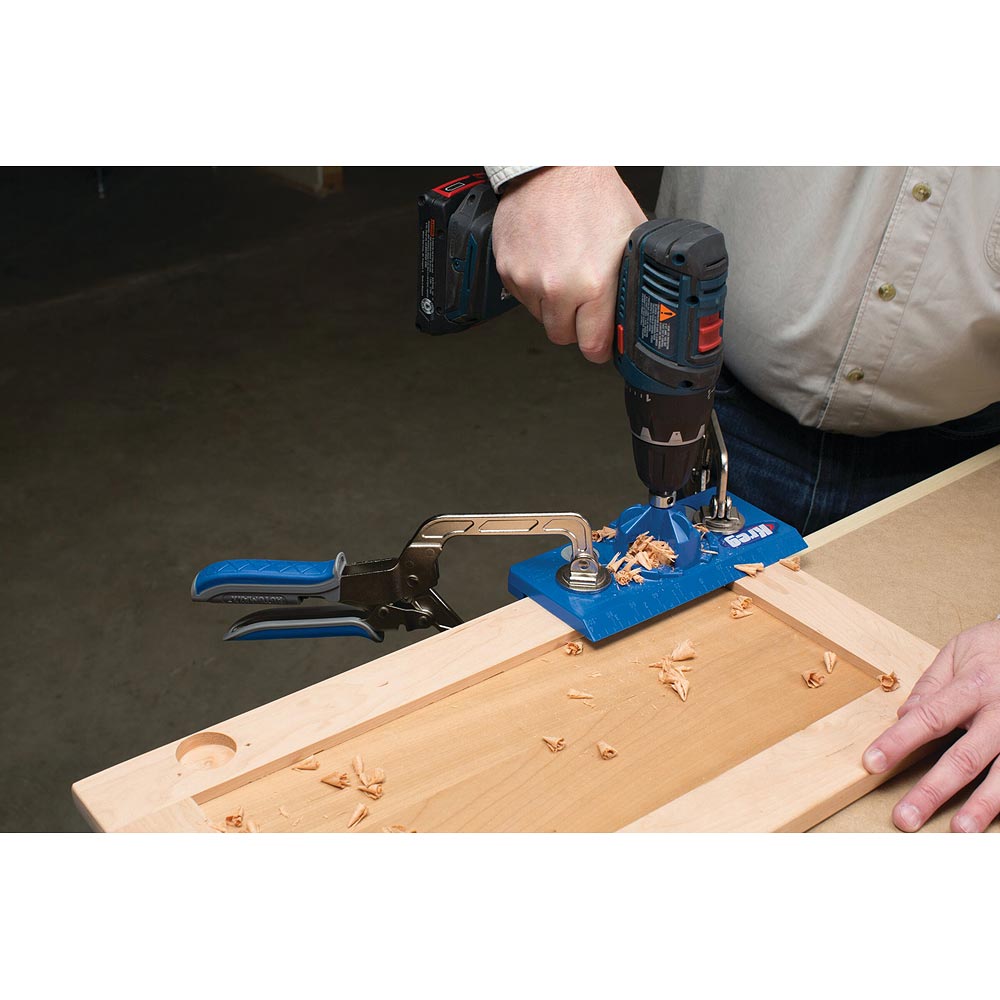

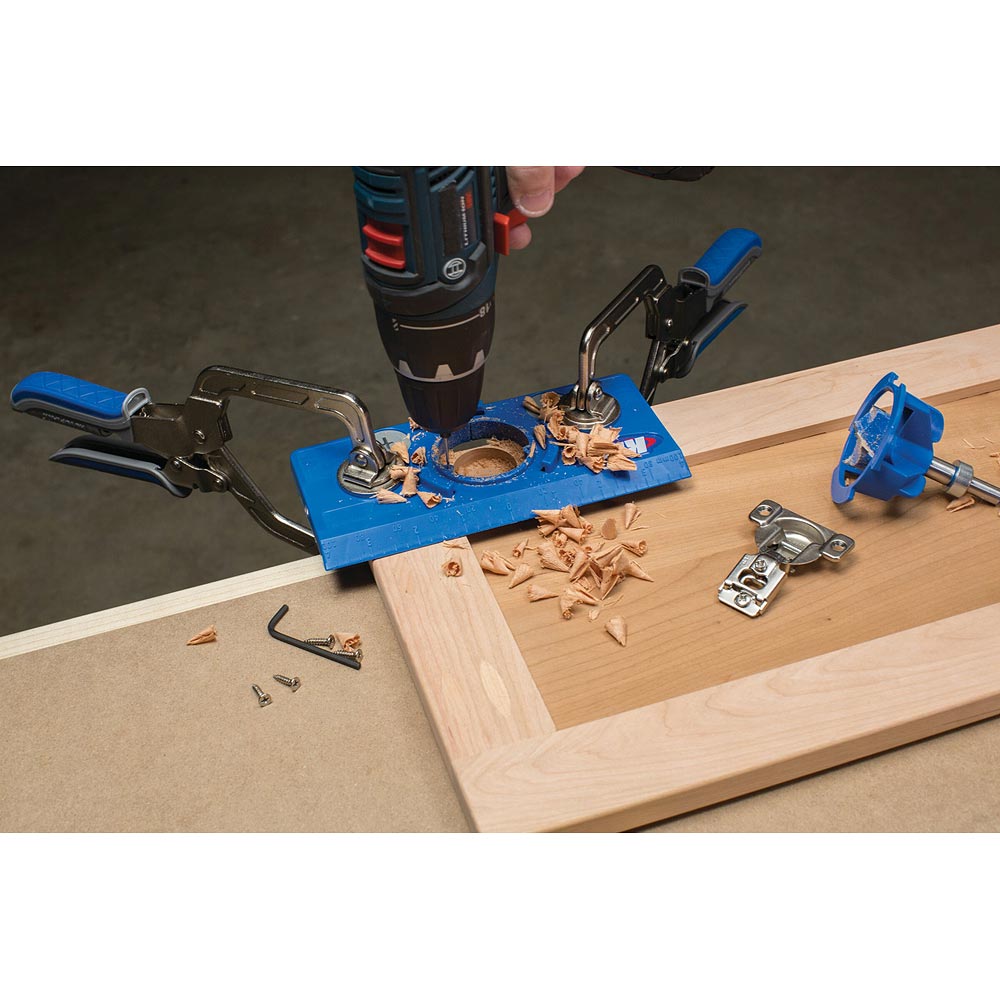

Intuitive for beginners but robust enough for professionals, the jig is ideal for single doors or full kitchen installations. Just set the cams to your hinge specifications, align the jig, and drill confident, repeatable holes for flawless door alignment.
The Concealed Hinge Jig comes with a high-quality, carbide tipped bit to ensure great results. Compatible with all drills and 3, 4, 5 and 6mm hinge offsets.
