UJK are proud to introduce the Universal Dovetail Jig; made and developed in the UK. Straight out of the box it gives you the possibility of producing six different joints, with unrivalled accuracy.
UJK Universal Dovetail Jig can produce:

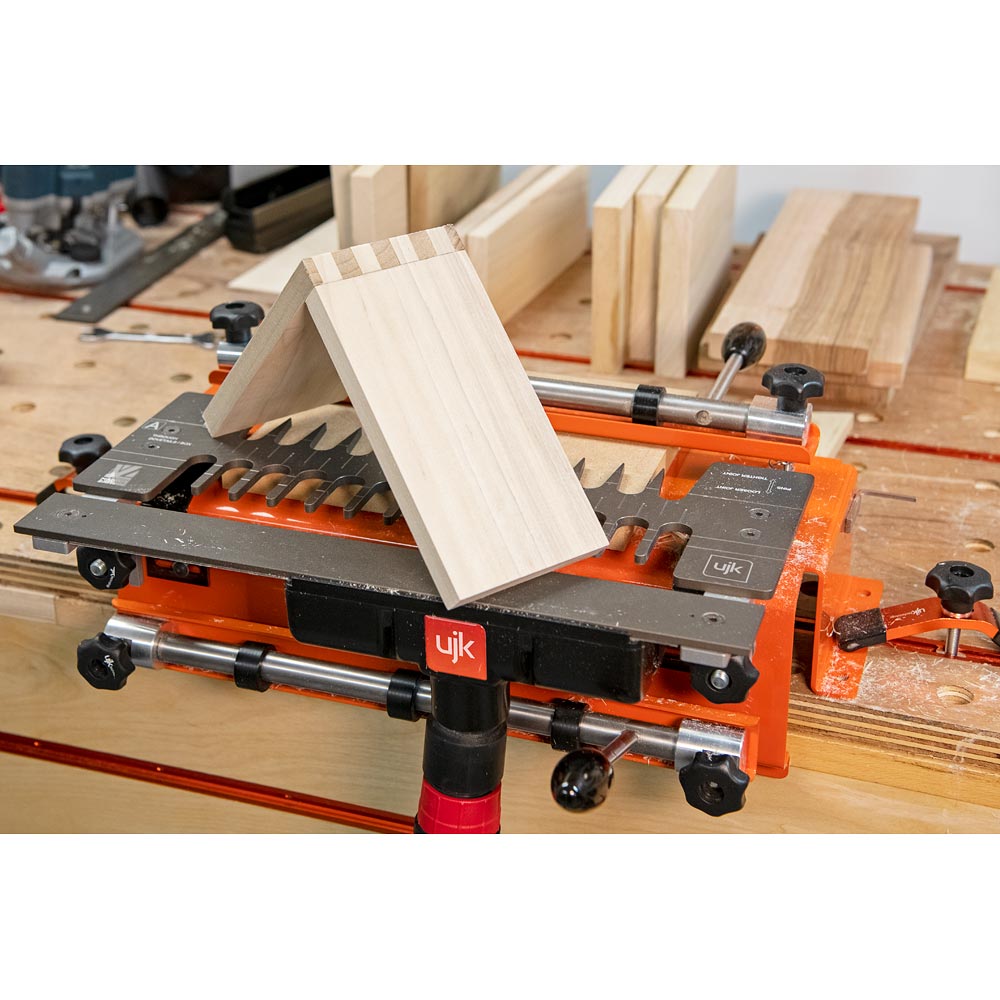

1. Half blind dovetails
2. Box/ finger joints
3. Through dovetails
4. Sliding dovetails
5. Groove/ housing joints
6. Corner dovetail rebates

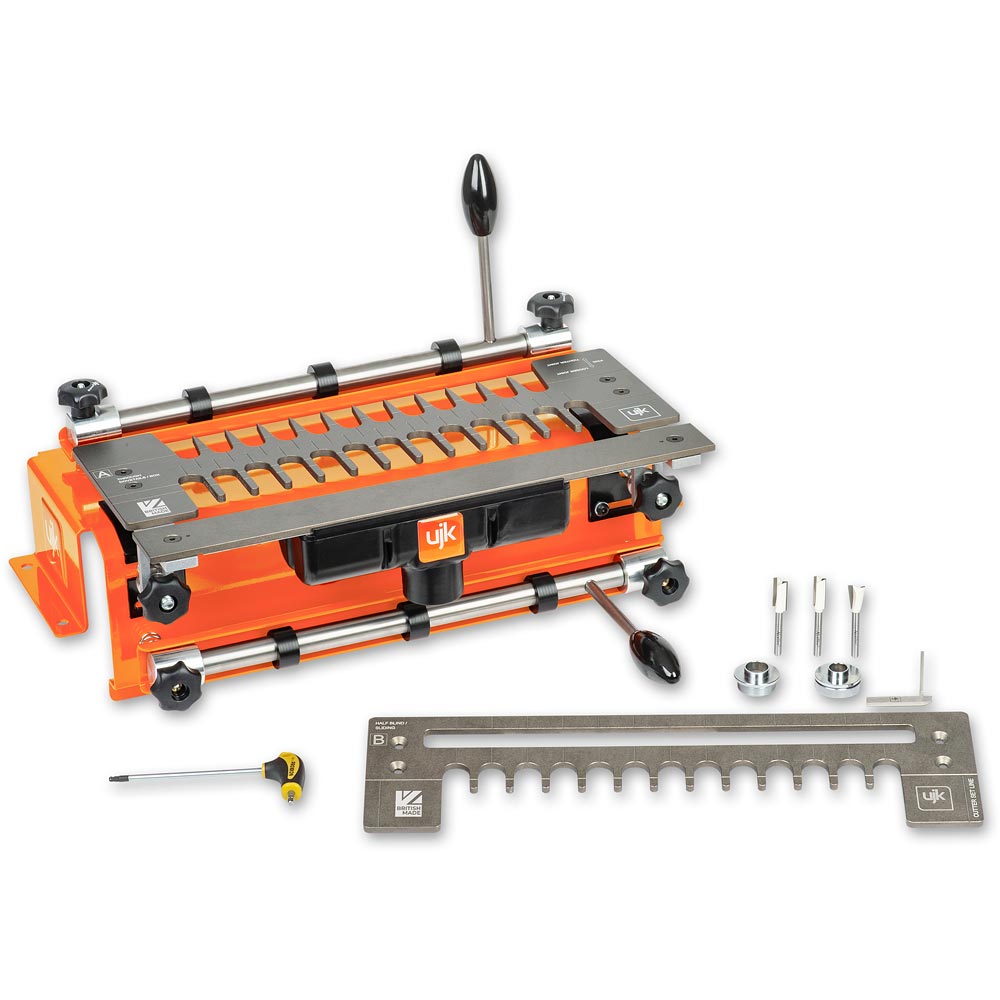

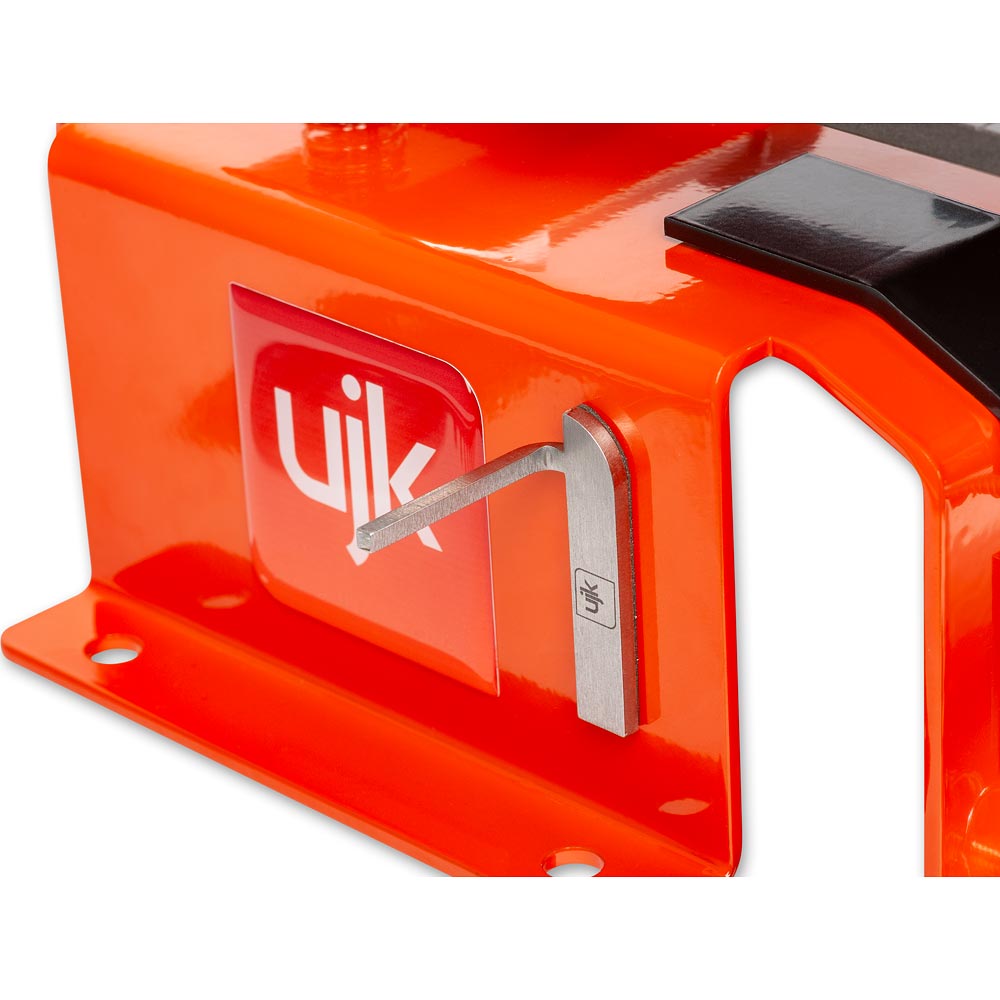

The base of this jig is a heavy gauge steel pressing with other parts precisely CNC machined; a combination of accuracy and strength. The super hard anodised finish on the finger templates ensure long term accuracy. The jig features a stabiliser bar located in front of the comb, which provides a much greater surface area to support your router’s base.

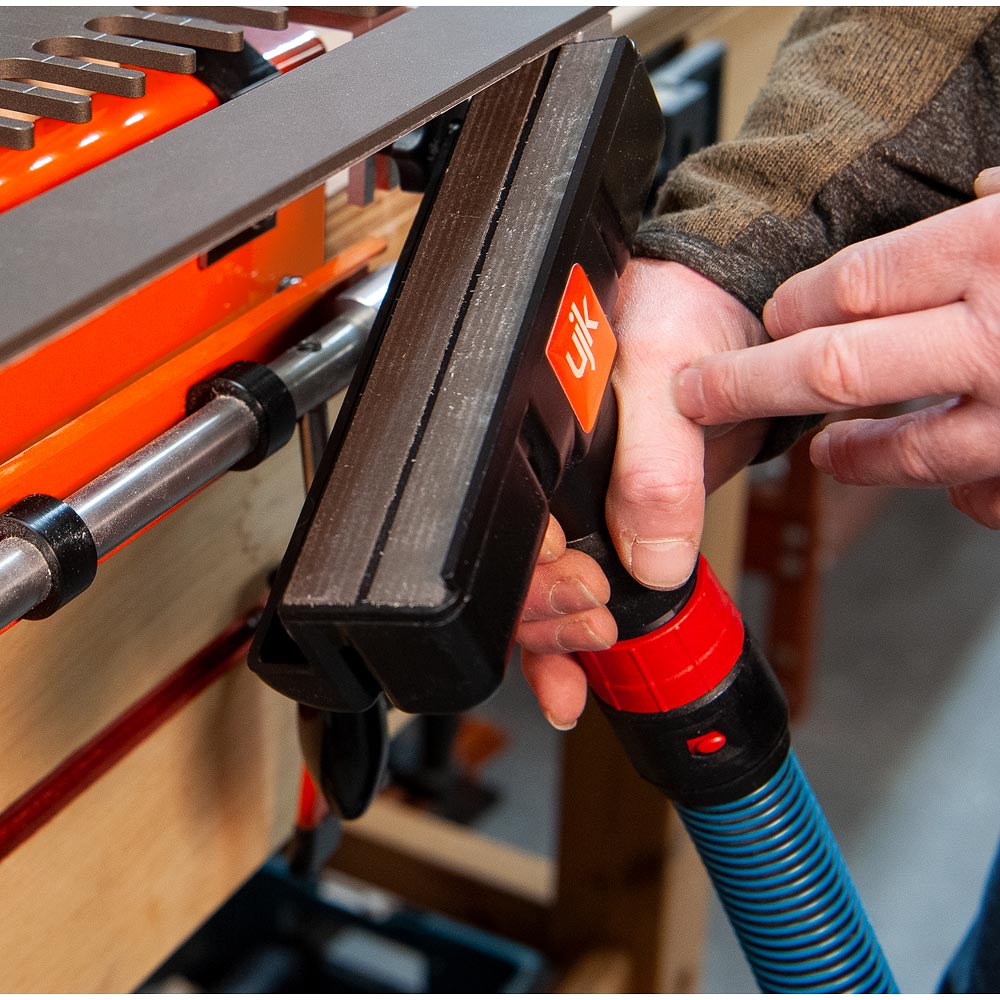

The UJK Universal Dovetail Jig also incorporates a greatly improved dust extraction outlet. Held in place by a strong magnetic strip, the outlet is easily detached when loading workpieces in your jig.

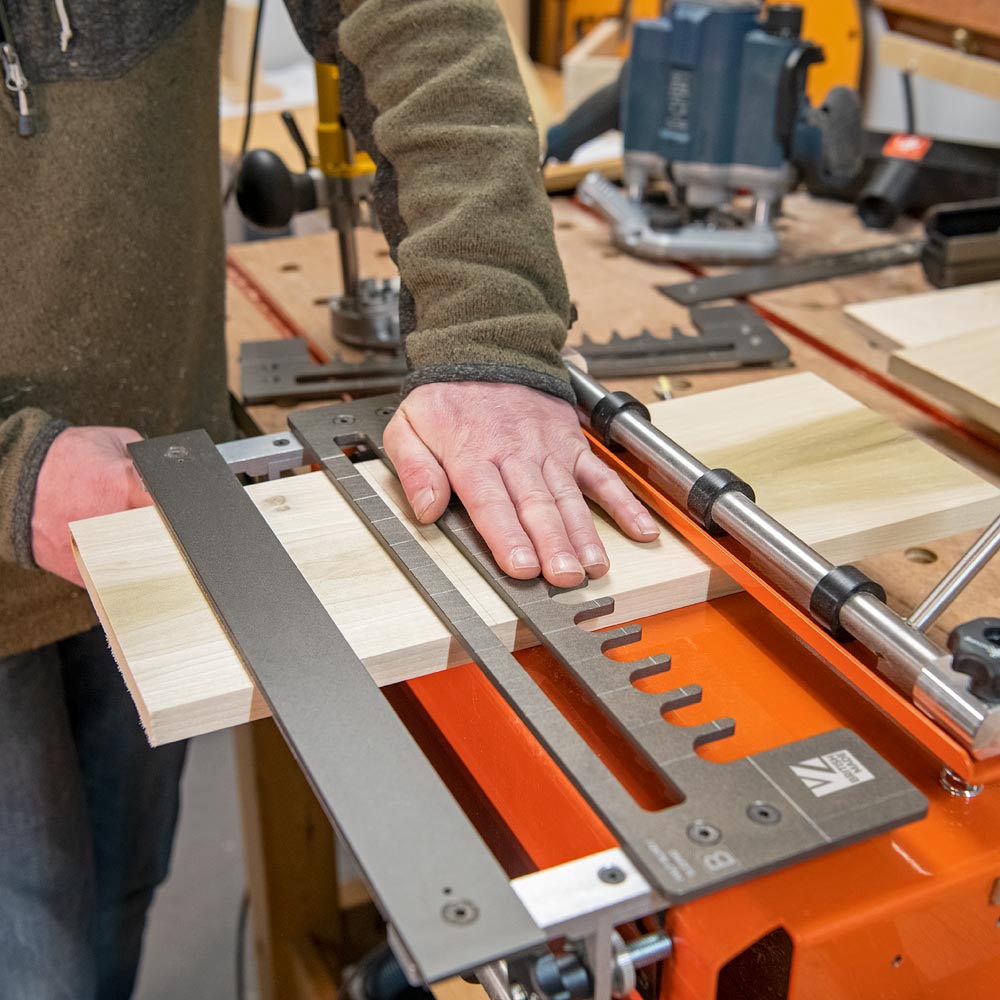

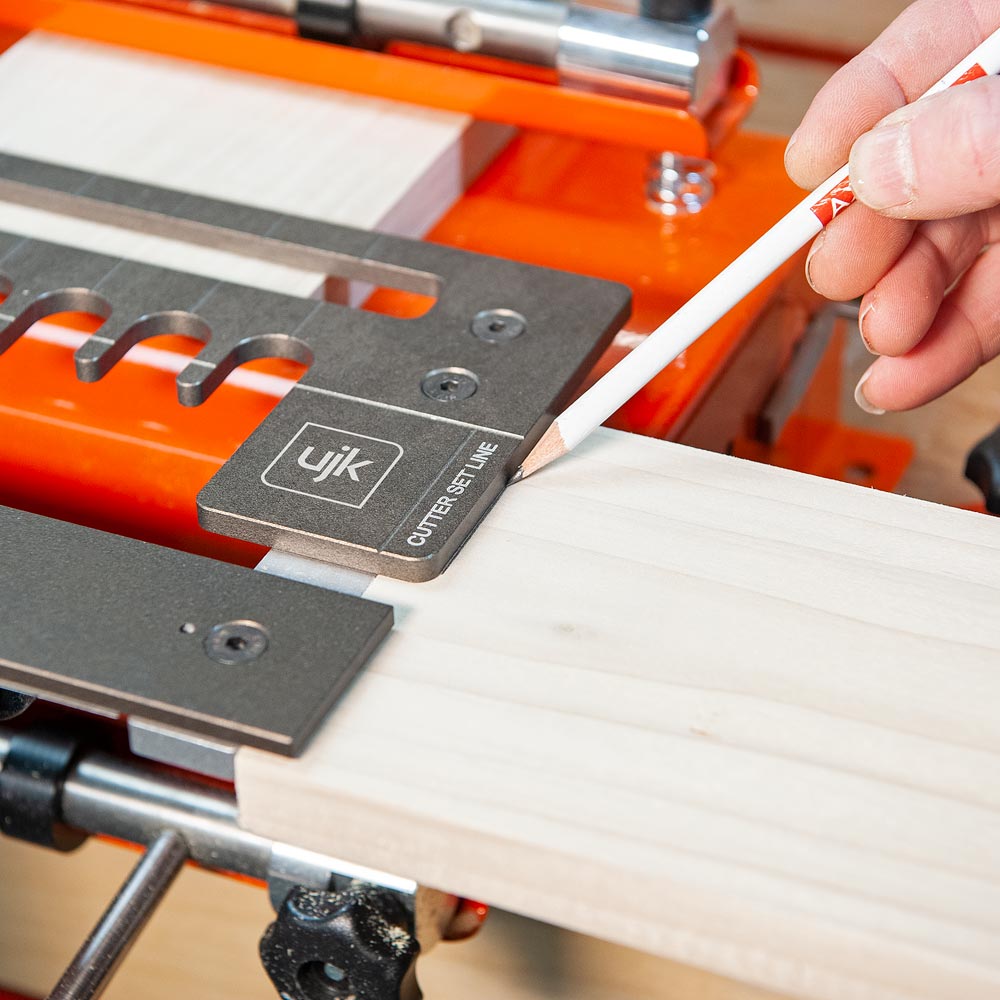

Set-up and use is simple. An 11mm offset at each end of the template greatly speeds up initial marking. Fast cam action clamps, hold your workpieces quickly and securely.

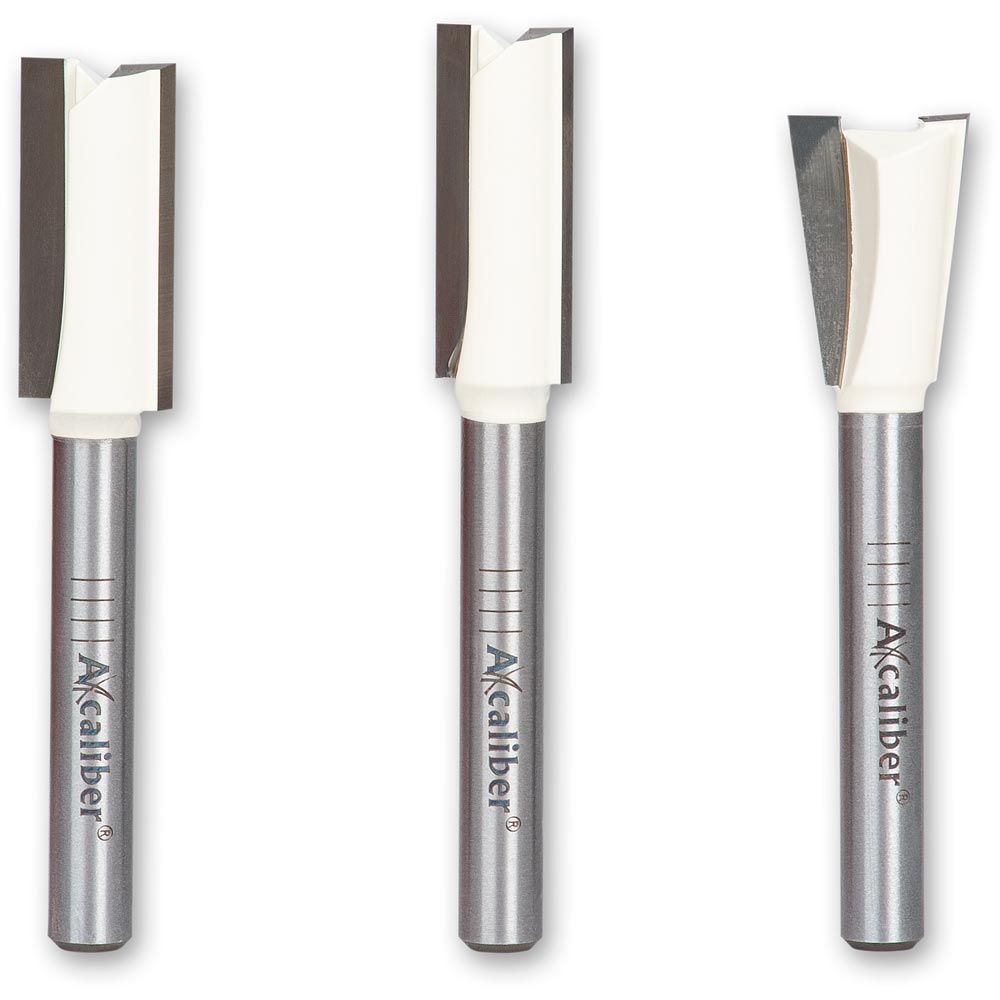

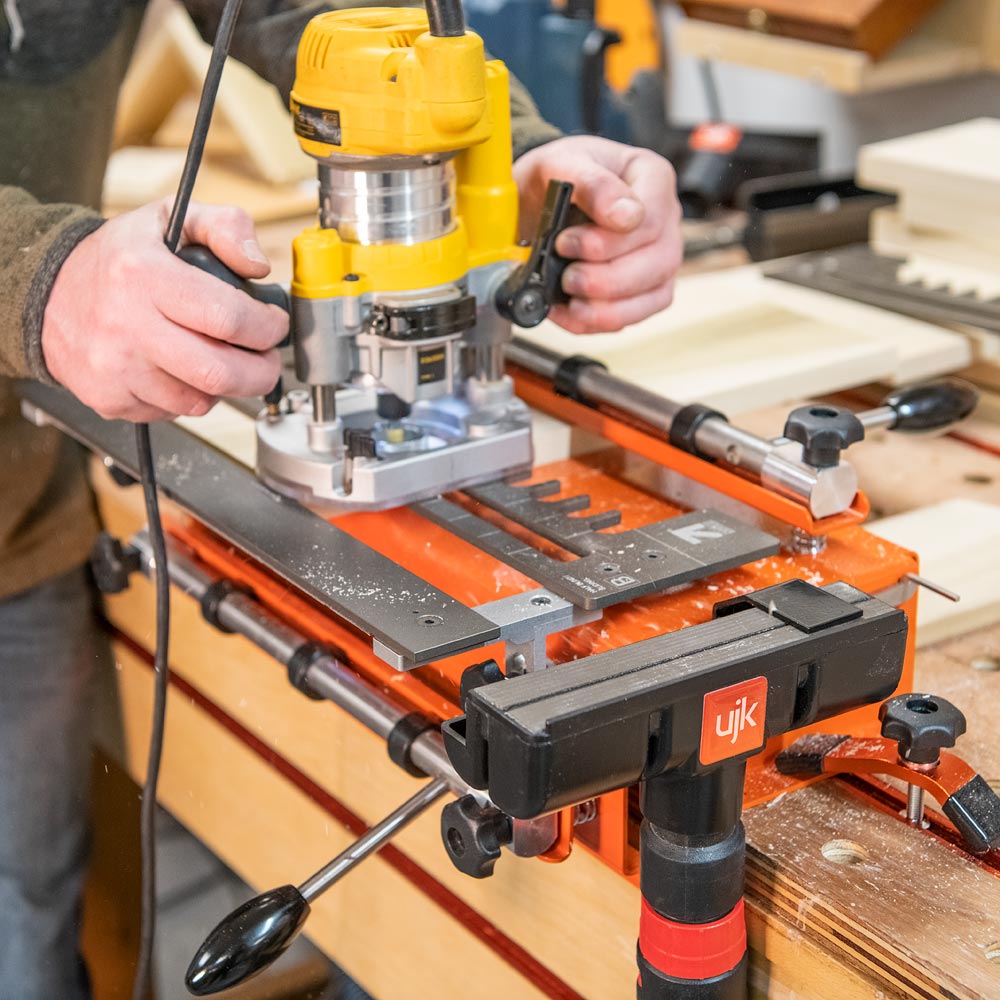

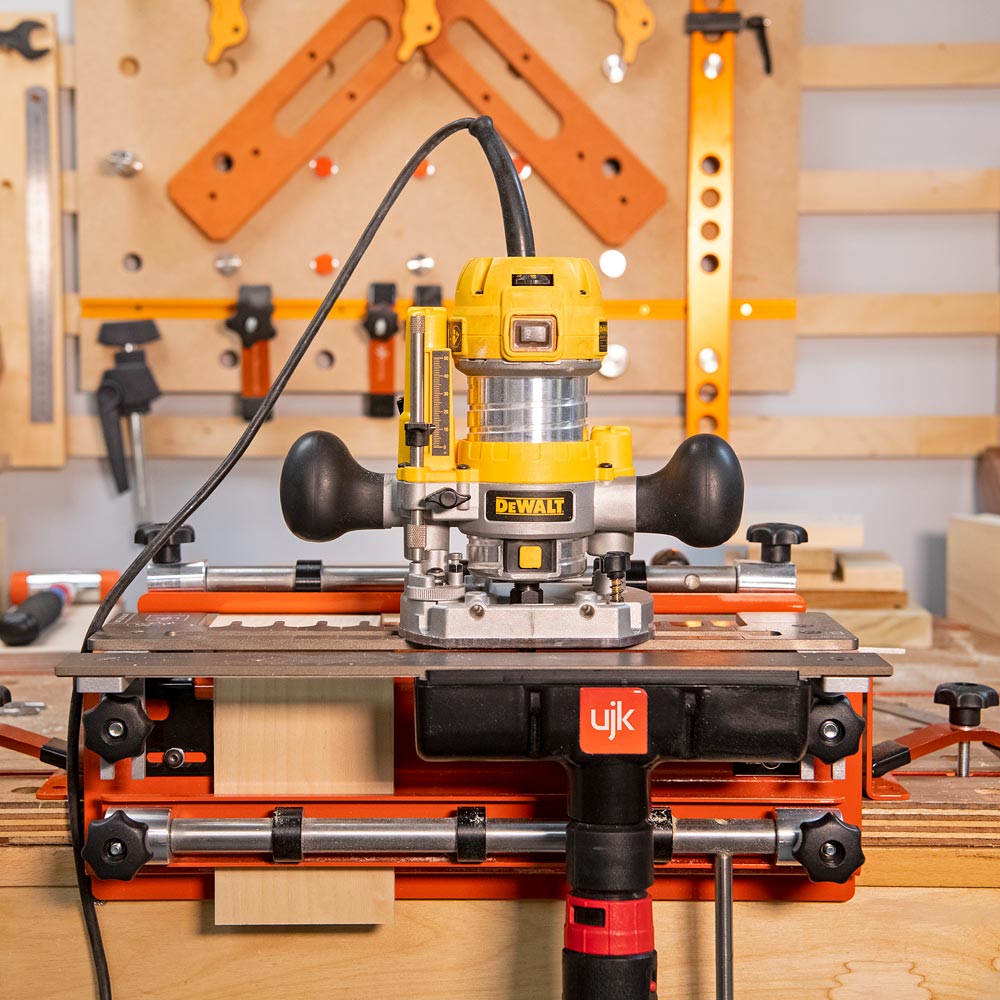

The jig can be used with any router that will take 1/4
Material capacity: 300mm width, 6–25mm dovetail thickness.

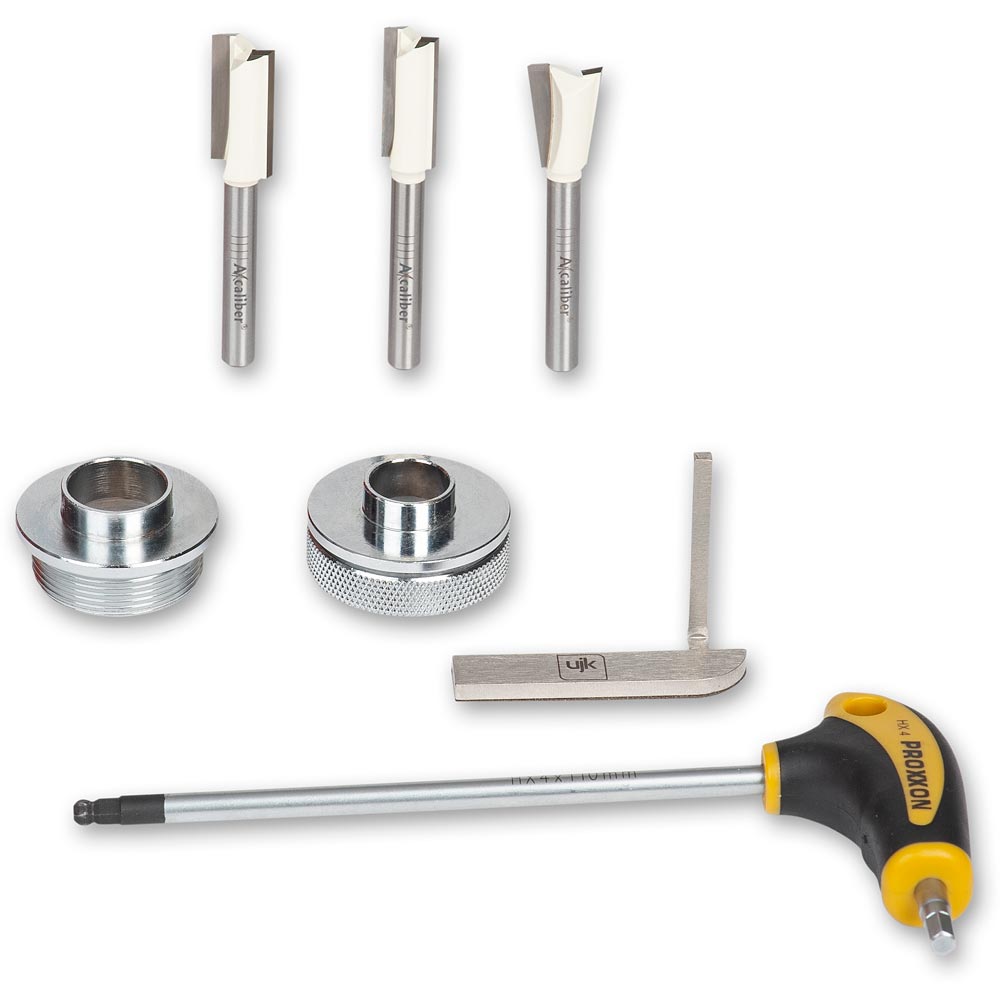

An additional UJK guide bush adaptor to suit your router should be purchased separately. An 8mm- 1/4
