  • Features positive stops at 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90°
  • Anodised aluminium fence rail slides on fence body
  • Flip-over length stop for repeat accuracy
  • View full description

Customers Also Bought

Frequently Bought Together

Total: £193.92

A cut above

Immediately improve your cut quality, accuracy and safety; the UJK Precision Mitre Gauge system is the ideal upgrade for bench saws, bandsaws and router tables.

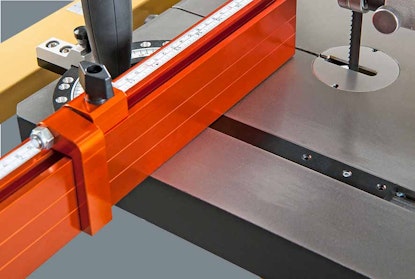

Secure fixing

Any play between the mitre slot and the bar will impact how your mitre joints fit together. The UJK bar features adjustable sprung ball grub screws for a perfect fit, resulting in the ultimate precision cut.

Easy, accurate set up

The useful presets (positive stops) enable common mitre angles to be achieved with speed and ease. When more complicated angles are required the easy-to-use scale allows the quadrant to be locked at any angle within its range.

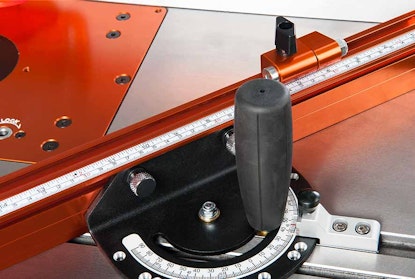

Comfortable control

The anodised aluminium fence rail is 458mm long, providing greater support, allowing multiple cuts to be made with increased control and safety.

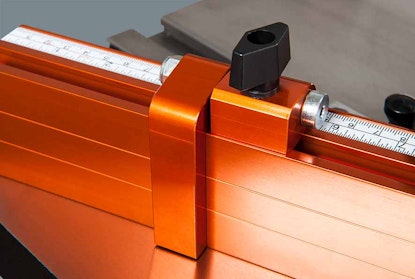

Repeatable accuracy

The flip-over length stop slides along the top of the fence and can be locked anywhere along its length. This solid brace enables repetitive cross cuts to be set up and carried out with ease and accuracy.

Widely compatible

The UJK Mitre Gauge system fits most bench tools with a standard ¾" x ⅜" (19 x 9.5mm) table slot. If your machine does not have a T slot, the locking washer can be removed.

This mitre gauge system is made from 5mm steel plate and features positive stops at 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90°. Simple to adjust with a spring loaded plunger stop and able to be set at any other angle between 0-90° as required.

The other main feature is the anodised alloy fence, fitted with an adjustable flip-over length stop. This fence can be slid along the gauge body by releasing two thumb screws. The 320mm bar can be fitted to a standard 3/4" x 3/8" (19 x 9.5mm) table slot; the locking washer can be removed if required.

This mitre gauge will improve accuracy when cross or mitre cutting on many machines or router tables.

Key Features

  • Features positive stops at 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90°
  • Anodised aluminium fence rail slides on fence body
  • Flip-over length stop for repeat accuracy
  • Indexing stop system is adjustable for total accuracy
  • Makes it easy to quickly cut a perfect mitre joint
  • Standard 3/4" x 3/8" (19 x 9.5mm), 320mm bar, removable locking washer
