Axminster Workshop AW200BDS Belt & Disc Sander - 230V
Axminster Workshop AW200BDS Belt & Disc Sander - 230V
Key Features
- Motor - 550W, induction quiet, direct drive
- Versatile sanding positions. belt being used in different positions
- Integrated fan for improved extraction when used with extractor
- Modern design and steel and cast construction
- View full description
Customers Also Viewed
A welcome addition to many small home workshops
This Axminster Workshop Belt & Disc Sander enables the shaping, sanding and profiling of wood to be carried out easily and safely.
Buy with confidence
Look for the icon and put your trust in Axminster Tools. You’ll get our comprehensive 3 Year Guarantee. Find out more

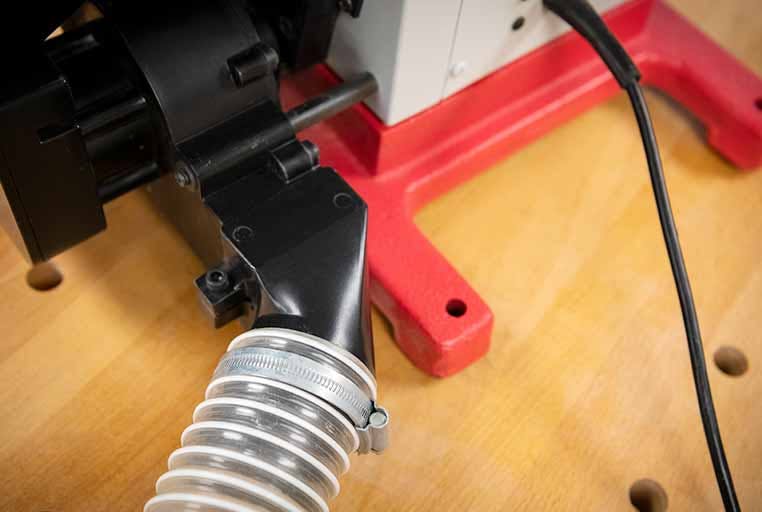

Efficient dust extraction
A fan built into the dust outlet makes extraction a breeze. When connected to an extractor, almost 100% of the dust can be removed.
Multi belt position
The belt sanding platen can be positioned vertically, horizontally or at any angle in between.

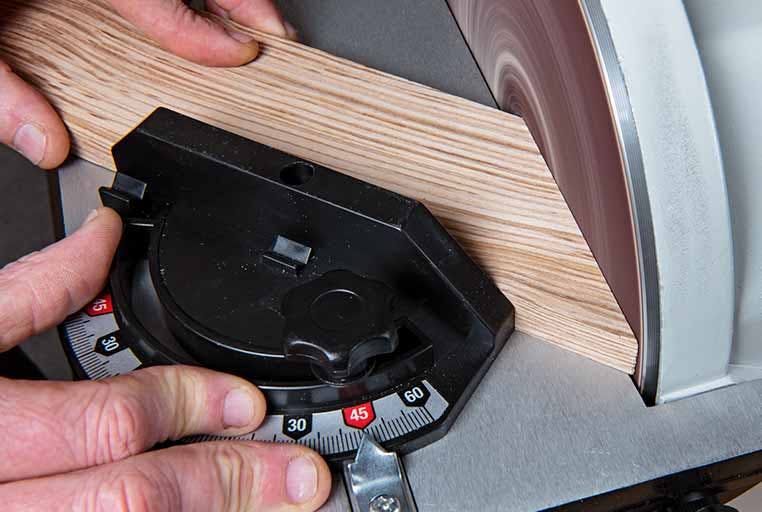

Sand compounds and mitres
Both the belt and disc tables incorporate a slot for the mitre fence, allowing bevel and compound angle sanding. Both sanding functions have a well-sized work table, which pivots from 0° to 45°.

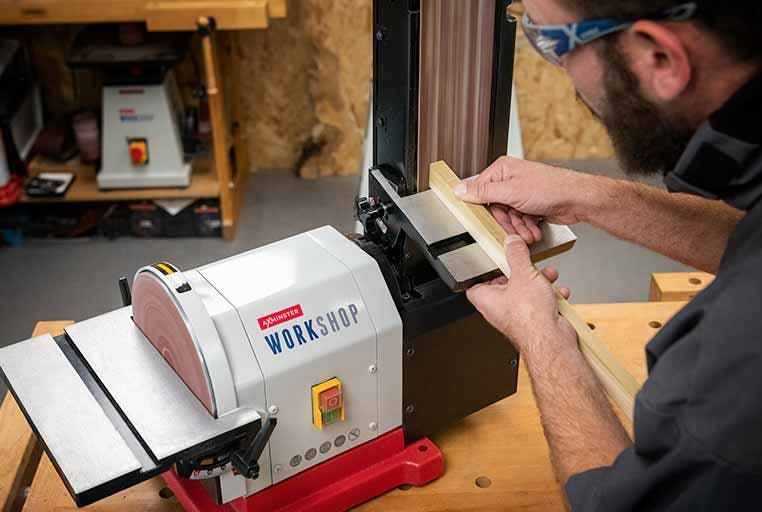

Quiet running
Both the belt and disc are driven directly from the 550W induction motor, making it quieter than a drive belt system.
Excellent guarding
Well fitting guarding not only makes this a safe machine to use but also helps improve dust extraction.
Cast iron body for minimal vibration
The main body is cast iron helping to reduce vibration for a more comfortable woodworking experience.
Recommended Accessories
-
-
-
-
-
-
-
-
Hermes BW114 VEL Abrasive Disc 200mm (Pkt 10) 120 GritFrom £17.48 £14.57
-
Axminster Professional Forged Flat Bar Clamp 200 x 80mmSpecial Price £10.44 £8.70 was £15.58 £12.98 Save £5.14 £4.28 -
JSP SpringFit™ Fold Flat Valved Respirator FFP2 (Pkt 10)From £20.48 £17.07 -
-
Axminster Workshop Four Grit Diamond HoneFrom £5.78 £4.82
The AW200BDS is a powerful combined 100mm belt and 200mm disc sander. The belt and the disc are driven directly from the motor spindle. As a consequence the machine is much quieter, there are no fiddly drive belts to worry about and does not suffer from a loss of power caused by a drive belt. Both functions feature cast worktables, which pivot from 0° to 45°. A mitre fence is supplied for bevel and compound angle sanding.
The belt sanding platen can be used vertically or horizontally or anywhere in between. The machine has a 63mm extraction outlet. A powered fan in the dust outlet port helps produce an airflow around both the belt and disc. When connected to a suitable vacuum extractor almost 100% dust extraction can be achieved. The main body is cast iron, which absorbs vibration and has locating holes with rubber grommets for securing this sander to a workbench.
The AW200BDS is supplied with a belt and hook and loop abrasive disc. There is a wide selection of abrasive belts and discs available.
Please note these machines are designed and manufactured for sanding wood and similar materials and should not be used to abrade or grind metal.
