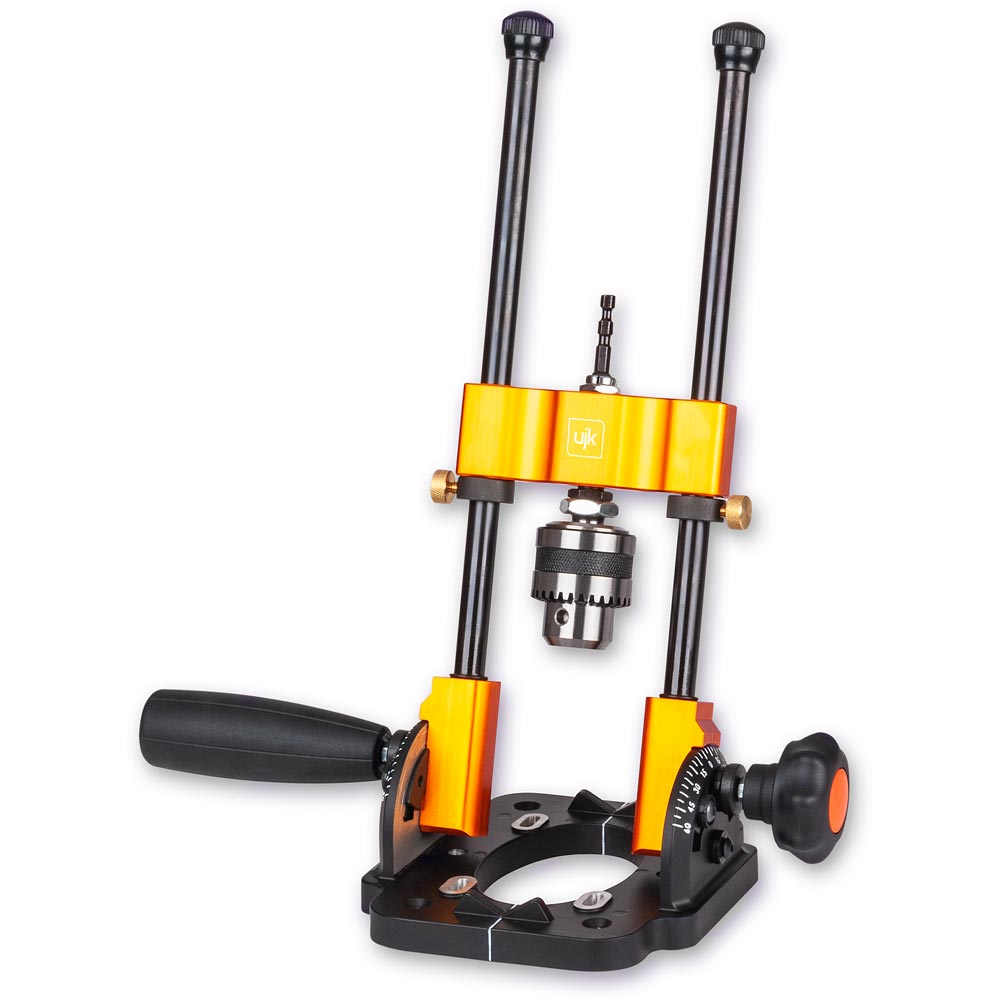

UJK Drill Guide with 10mm Chuck

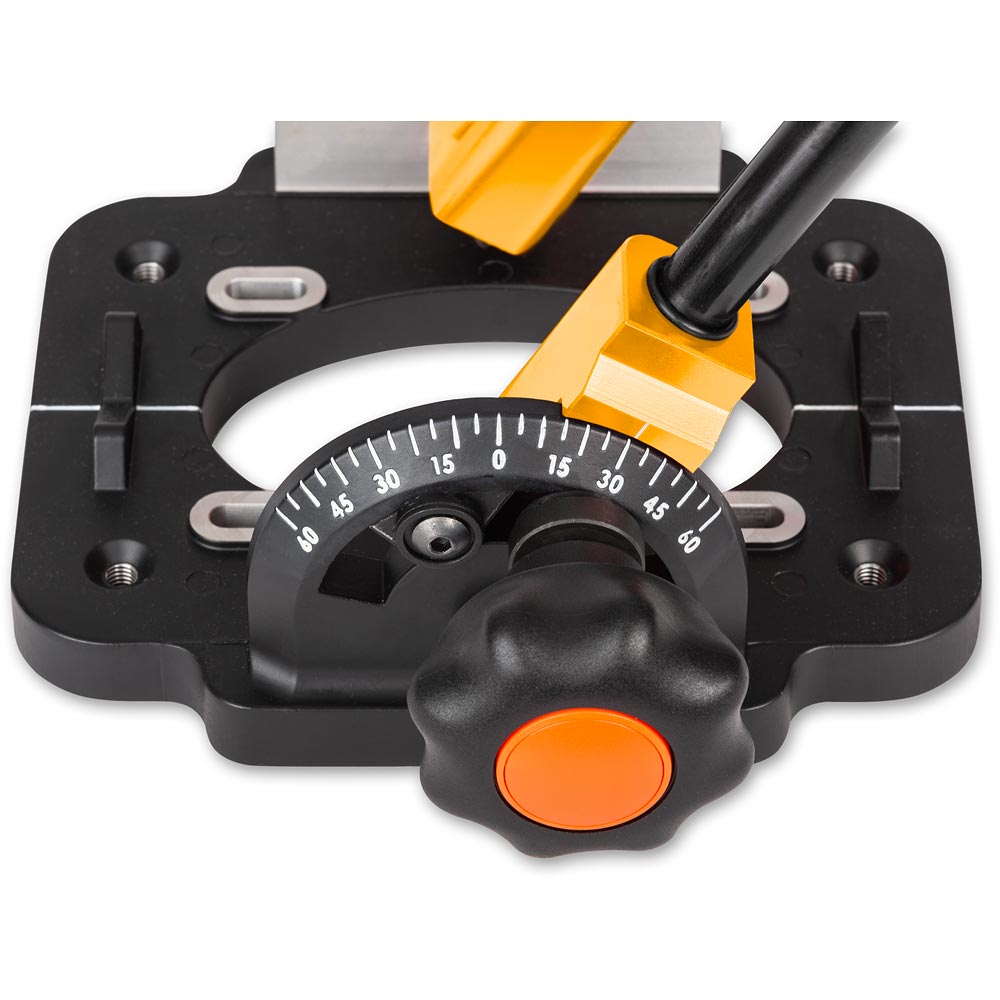

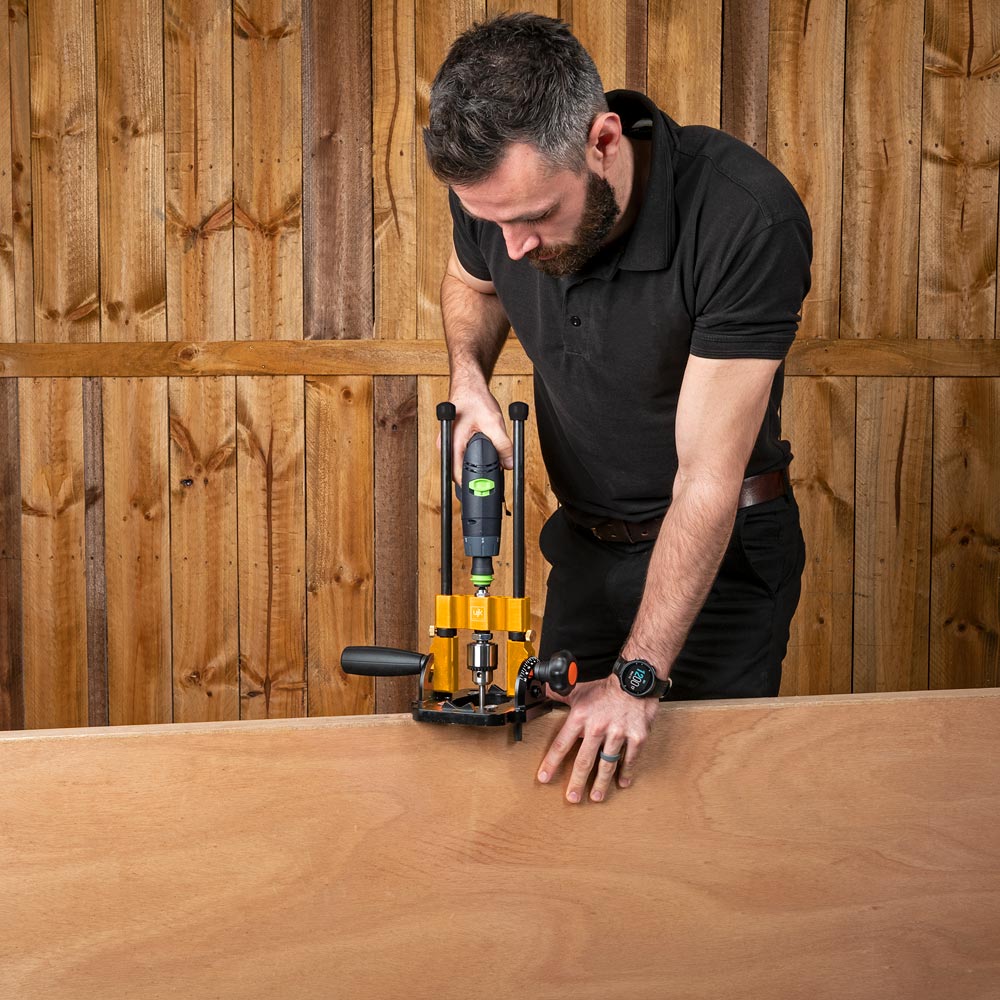

It is practically impossible to drill at a specific angle freehand. This carefully engineered drill guide helps you to drill at angles over a 110 range. The UJK drill guide is in effect a versatile and portable small pillar drill. The portability of this guide ensures that you can drill virtually anywhere. Set at 90 it produces perpendicular holes. Quadrants on each side of the base allow angle setting at ±55. A threaded knob on one side and the auxiliary handle on the other ensure any chosen angle setting is secure. The underside of the base has a rubberised high friction pad to help steady the guide. The large aperture in the base gives a clear view of the drilling mark and allows the use of bits up to 60mm diameter. Integral vee-guides mean you can drill round the stock or pipes. The base has holes for fixing the guide in place onto a jig or sub-base.

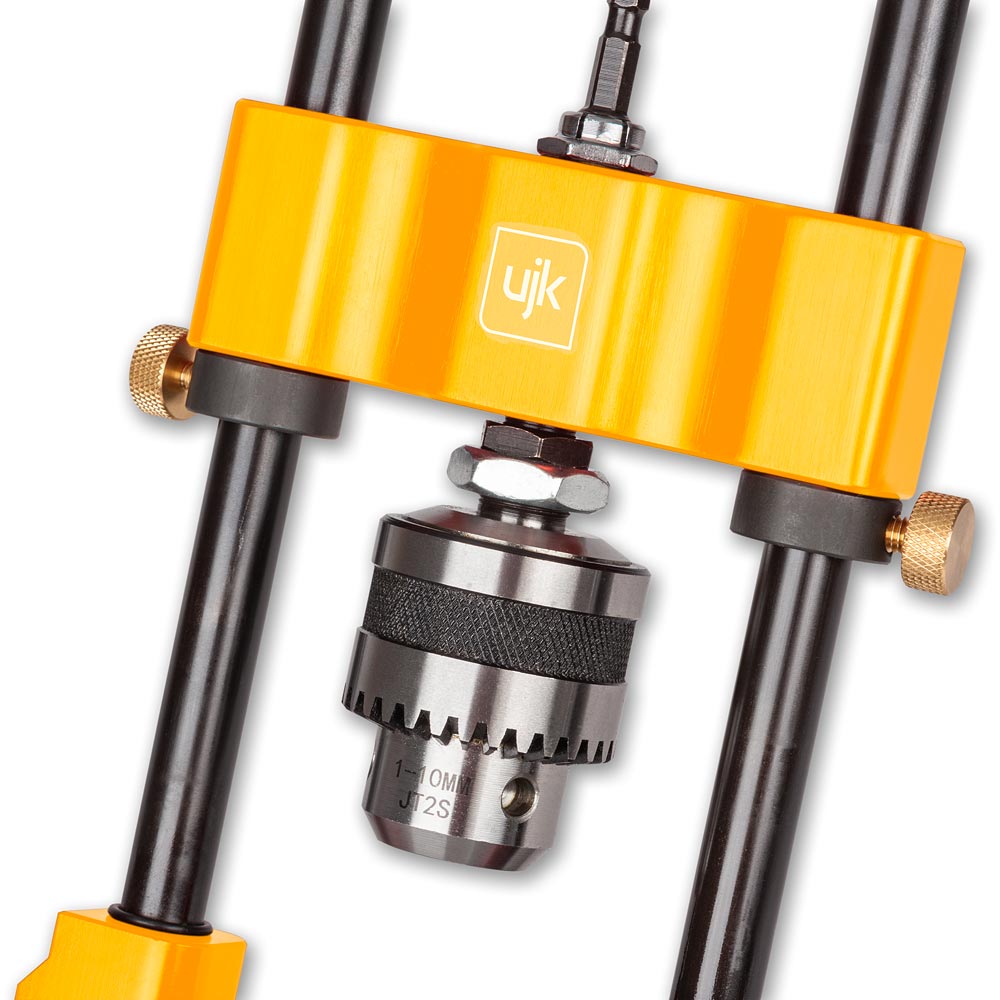

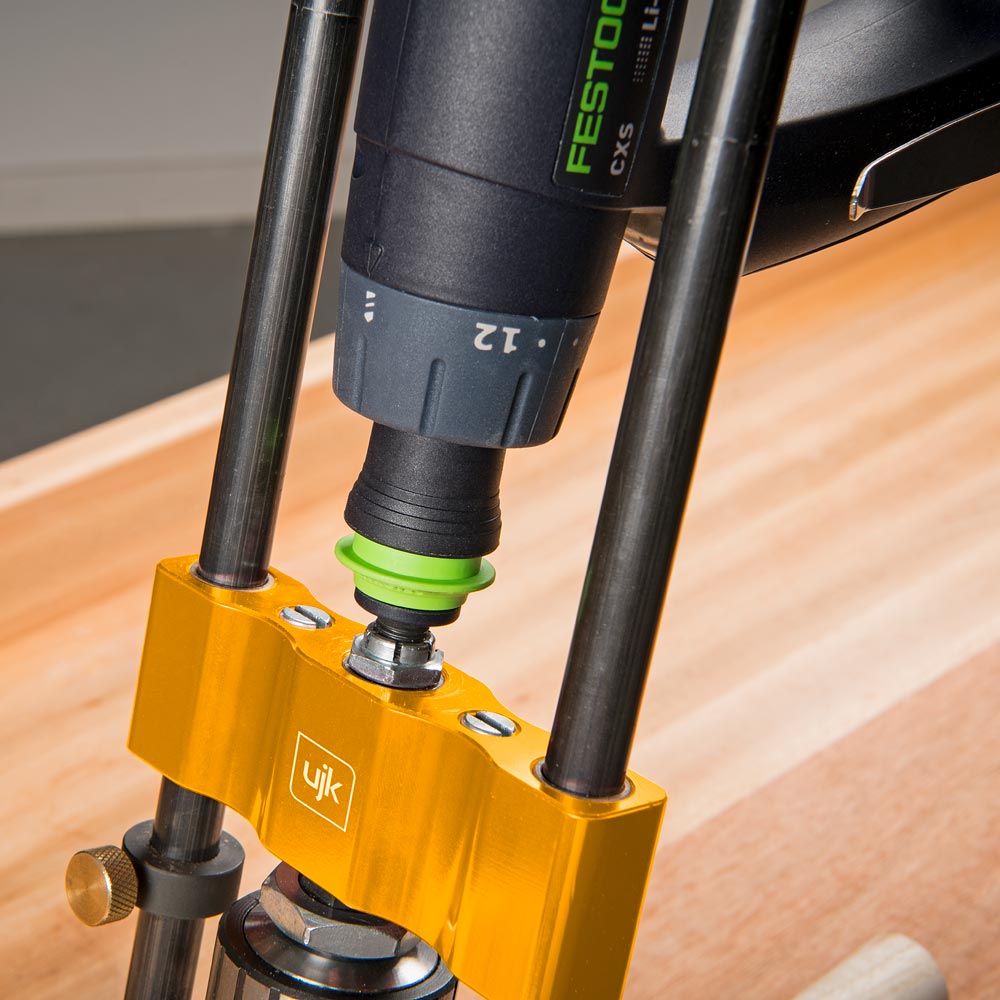

The chuck guide assembly runs between twin steel guide bars. Bronze bushes ensure a smooth action between the assembly and guide bars. There is enough space between the bars to accommodate most drills. A precision-machined main shaft runs inside another bronze bush. The drive shaft is a 1/4 hex allowing you to use either mains or cordless drills. The drill shaft ends in a 10mm capacity chuck. There is a depth stop for accurate boring and countersinking.

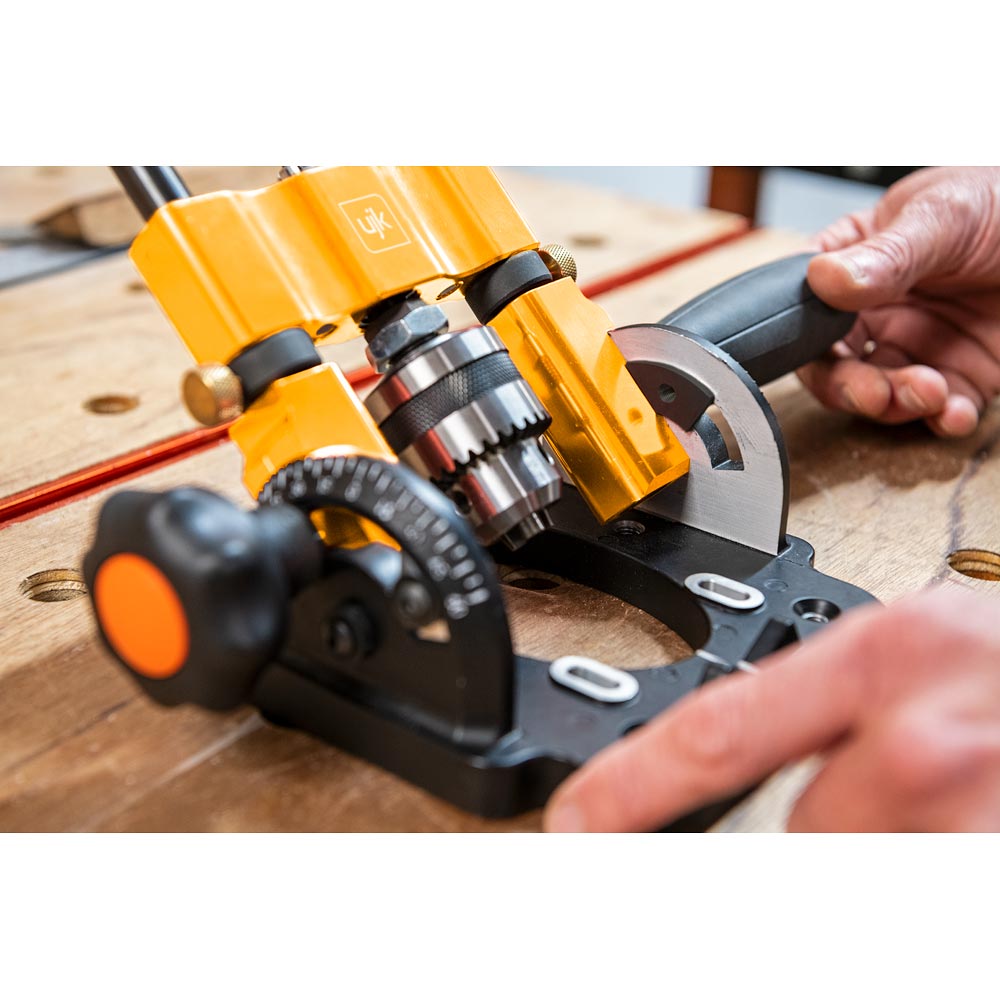

Included are UJK precision angle stops, specifically designed to allow you to set precise angles for your drilling tasks with the UJK Drill Guide, offering increased control and repeat accuracy in your work. These angle stops will allow you to work more efficiently by eliminating the need for manual measurements and guesswork, reducing errors and wasted materials. The precision angle stops are machined to ensure that an accurate 90° drilling position is achieved. They can also be adjusted to enable a precise, repeat stop at any angle and can be fitted on both sides of the quadrant.

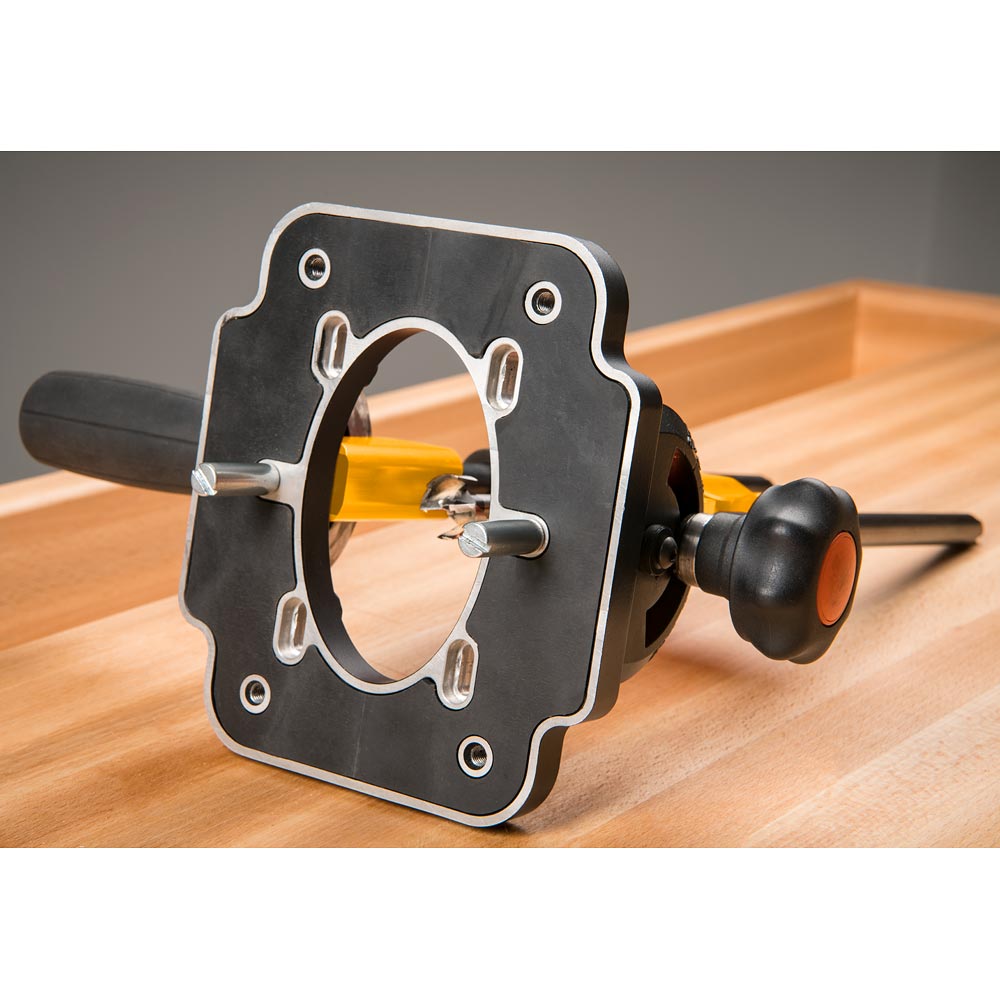

The UJK drill guide is solid, and offers a great deal of flexibility. Bottom of drill chuck to underside of base is 230mm. Maximum Travel 210mm. Two pins, stored in the chuck guide assembly, when screwed into the base allow self centering drilling, for example when fitting a lock mortice into a door. The capacity when using self centering pins is 85mm. Optional 13mm chuck and centring vice available.

N.B. Not suitable for use with impact drivers.
