Axminster Workshop No. 92 Shoulder Plane

109571
From £74.88 £62.40

In Stock
- get it Tuesday 30th Apr, order within and choose Premium delivery. Delivery info

Key Features

  • Full width blade, micro adjustable depth of cut
  • Adjustable mouth for coarse or fine work
  • Precision machined, precision ground for accurate results
  • Sole is flat and the sides are square to the sole
  • O1 steel, 19mm wide blade
  • Converts into a chisel plane, for cleaning stopped rebates
  • View full description

Customers Also Viewed

Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

The No. 92 Shoulder Plane...

Predominantly used for cleaning and fine tuning tenon shoulders, as well as cleaning stopped rebates.

Blade

O1 steel, offering good edge retention and is 19mm wide. The blade is micro adjustable for precise control of the depth of cut.

Body

Precision ground for perfect accuracy; the sole is flat and the sides are square to the sole.

Mouth

Adjustable mouth for fine or coarse work, micro adjustable for precise control of the depth of cut.

Chisel plane

Coverts to a chisel plane for cleaning stopped rebates. Simply remove the upper section completely.

Frequently Bought Together

  1. Axminster Workshop No. 92 Shoulder Plane
Total:
£163.02 £135.85

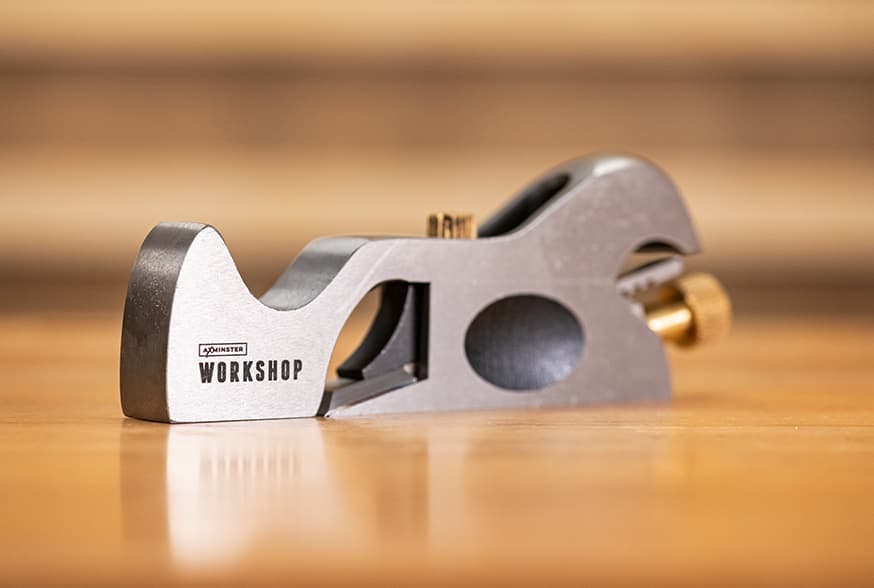

Perhaps not a plane used on a daily basis but when needed it functions beautifully. Similar in design but longer and narrower than the No.90. The No.92 comes into its own when cleaning and fine tuning tenon shoulders, hence the name. The body is cast and machined from fine grey iron. It is precision ground and polished to ensure the sole is flat and the sides are square to the sole. A finger recess on both sides and a well-rounded upper section make a comfortable grip and easy control. The 19mm full width blade is micro adjustable for precise control of the depth of cut. The blade is a fraction of a smidgen wider than the body making it easier to set for work into the corner of a shoulder.

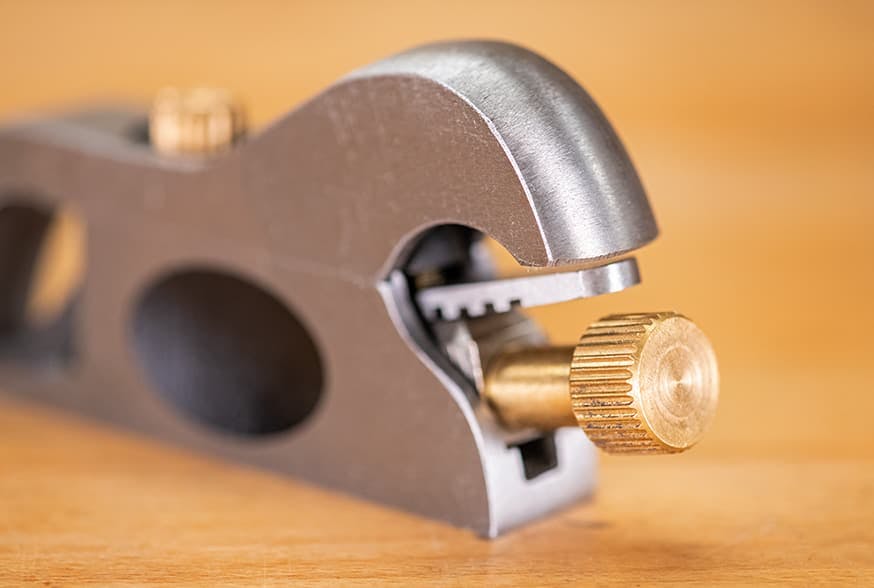

The mouth is adjustable, by moving the upper section forwards or backwards, for fine or coarse work. Removing the upper section completely, converts the plane into a chisel plane. A small set screw inside the front section ensures you retain the original mouth setting when reassembling the plane.

The O1 steel blade comes with a 25° bevel and only requires honing before use ( a 30° micro bevel can be done in less than a minute). The Axminster Workshop No.92 is a sound investment in your woodwork and represents good value for money.
