Spray smarter and finish faster
Compact, portable, and packed with smart features, the (Diamond) D6 is everything you need for flawless finishes, job after job.
High-Power 6-Stage Motor
Delivers exceptional power with a maximum PSI of 11.5, ensuring even coverage and a stunning finish.
Built to lastÂ
Engineered for efficient and cooler operation, the D6 ensures unmatched longevity, whether used in the workshop or on site.
Spray thick paints with ease
Provides consistently warm, dry air, atomising even the highest viscosity coatings - such as latex and urethane – with little or no thinning required.
Consistent, repeatable settings
Six-stage pressure control ensures accurate, repeatable results with a simple button press.
Built-in remote control
Power the unit on/off remotely—no need to unplug or return to the base.
Retractable gun holder
Flip-out holder stores gravity-feed guns neatly without a separate stand.
Advanced filtration system
Dual filters with easy access caps keep the turbine clean and running smoothly.
Compact and portable
Lightweight design with ergonomic grip makes it easy to carry and store.
Includes a premium Fuji Spray Gun of your choice plus six complimentary extras
Choose from the T75G Gravity, T70 Suction or G-Xpc Gravity spray guns.
They all feature a non-bleed lightweight HVLP design which reduces fatigue, turbulence and dust in the spray area. A side-mounted fan pattern control allows for quick adjustments between horizontal, vertical, and circular spray patterns. The Fuji Spray tilt feature allows the user to spay in any direction, including upwards.

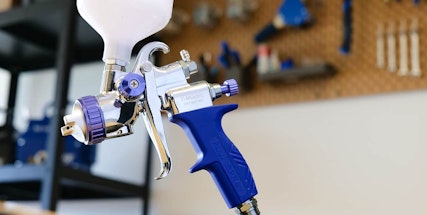

T75G T-Model GravityÂ
600cc pressurised gravity cup. Ideal for precision work and fine finishing projects, especially where control and manoeuvrability are key.

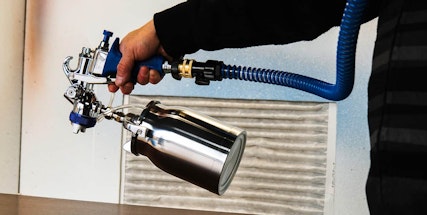

T70 T-Model Suction
950cc pressurised suction cup. Ideal for larger-scale projects and professional-grade finishes, particularly in woodworking, cabinetry, and automotive refinishing.

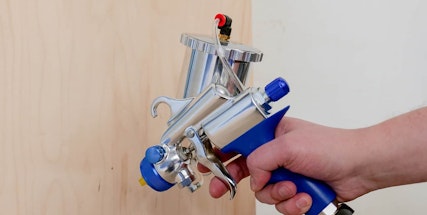

G-Xpc Gravity
400cc pressurised gravity cup. Ideal sized gun for projects such as inside cabinets, furniture, bath restoration and spray body tanning.

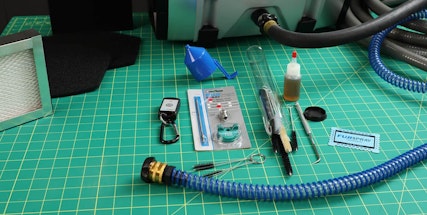

+ Six Extras
- 1.8mm air cap set
- 6ft flexible whip hose
- Replacement filter pack
- 19-piece spray gun cleaning kit
- Wet film gauge
- "Always Measure" booklet
Coatings setting reference
Suggestions on usage should be used as a guide only. Experimentation is the best method to determine which setup performs best for your desired coating.
Setting 1: Thinner viscosity products. Shading and toning stains, inks, touchups, and dyes.
Settings 2-3: Automotive enamels, airplane and marine finishes, nitrocellulose lacquers, pre-cat lacquers, shellacs, sealers, acrylics, synthetics, polyurethanes, stains and varnishes.
Setting 4: Catalysed lacquers, primers, varnishes, urethanes, enamels, high viscosity industrial coatings, sealers, polyurethanes, oil-based paints, epoxy enamels, plastics, floor paving paints, latex (walls and ceilings), and multi-fleck paints.
Settings 5-6: Stone finishes, texture coatings, industrial primers, water-based 2K acrylic topcoats, high viscosity industrial coatings, and nitrate dope.
