Axminster Workshop AW2260S Planer Thicknesser Spiral Block - 230V
Axminster Workshop AW2260S Planer Thicknesser Spiral Block - 230V

A 0% interest offer you can use again and again.
PayPal Credit is like a credit card without the plastic. And with 0% interest for 4 months on all purchases of £99 or more, it’s the perfect way to spread the cost of larger online purchases.*
Representative Example:
Representative
23.9% APR (variable)
Purchase interest rate
23.9% p.a. (variable)
Assumed Credit limit
£1,200
This example above illustrates the typical cost of using PayPal Credit as a standard funding method. If you take advantage of our offers and promotions, including our 0% for 4 months offer, the interest rate that applies will be lower in many circumstances.
How 0% interest for 4 months works

Spend £99 or more in one go with PayPal Credit.

Then automatically get 0% interest for 4 months on that purchase.*

Even better, you can use this offer again and again on every purchase over £99.

Spread the cost of orders up to £30,000 with iwocaPay.
We accept iwocaPay to give business customers more control when it comes to paying. iwocaPay is available for UK Limited Businesses, LLPs and Sole Traders on orders of £150 to £30,000.
When you get to the iwocaPay checkout you'll see two choices:
- Pay Now in just a few clicks, you can scan a code to pay us straight from your bank account.
- Pay Later you'll be able to set up a payment plan with iwocaPay to split the cost with Pay in 3 (Interest Free) or Pay in 12 (3.33% Interest Rate Per 30 Days) equal monthly payments.
Key Features
- Substantial planer/thicknesser with spiral cutter block
- 24 solid TC cutters produce exceptionally smooth finish
- Cast iron tables and alloy tilting fence for accuracy and stability
- View full description
Customers Also Viewed
Axminster Workshop AW2260S Planer Thicknesser
The AW2260S is a substantial planer/thicknesser with spiral cutter block capacity. This machine would be at home in any home workshop or small trade workshop.
Buy with confidence
So sure are we of the quality of this Planer Thicknesser, we cover all parts and labour free of charge for three years! Find out more

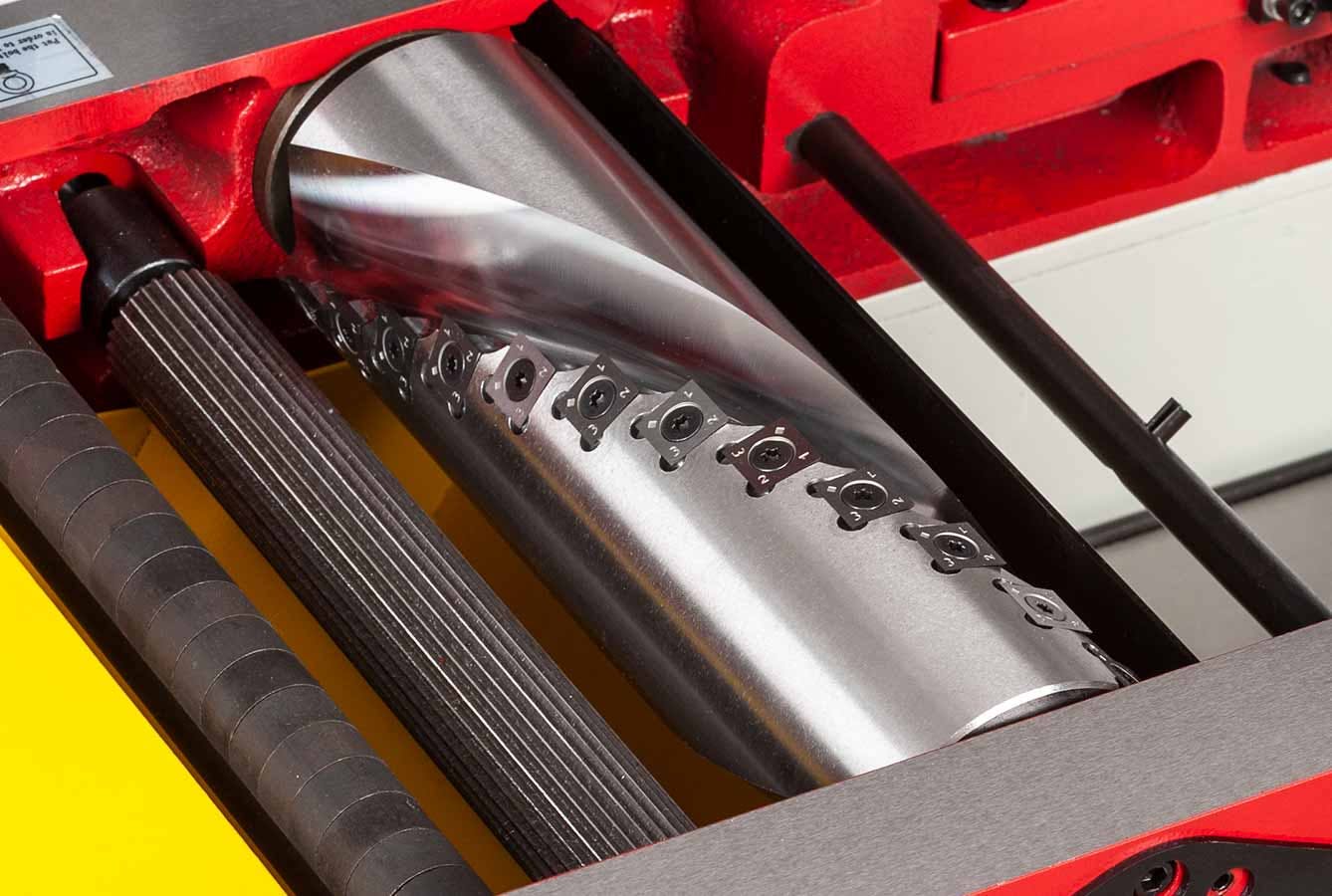

Spiral Cutter Block
Spiral cutters produce an incredibly smooth finish. They last many times longer than HSS blades and are noticeably quieter in use.

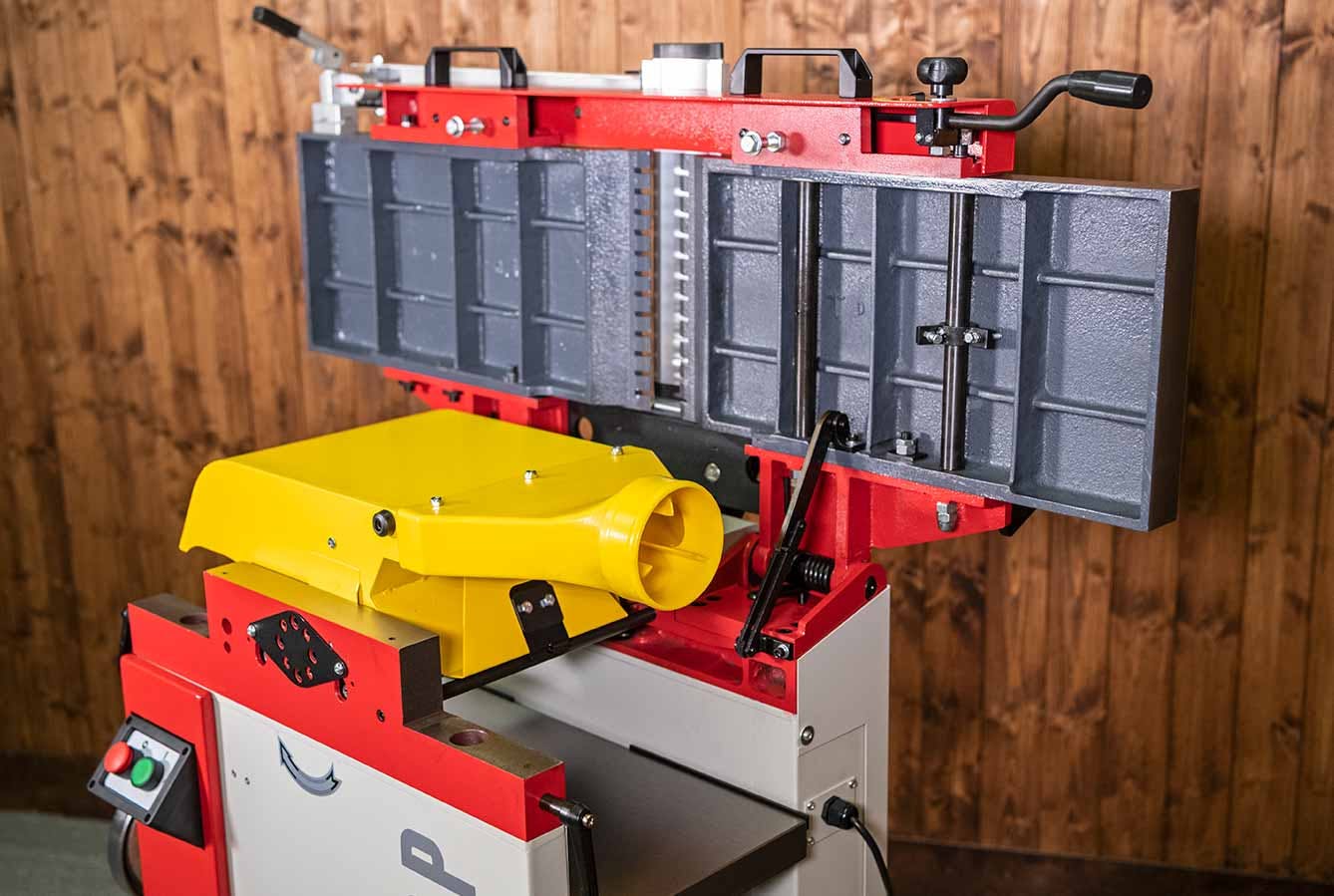

Single Lift Tables
The tables are joined together and can be lifted in one motion, making it quicker to switch between jointing and thicknessing.

Digital Height Readout
Quick and easy thickness adjustment ensures accurate cuts, every time.

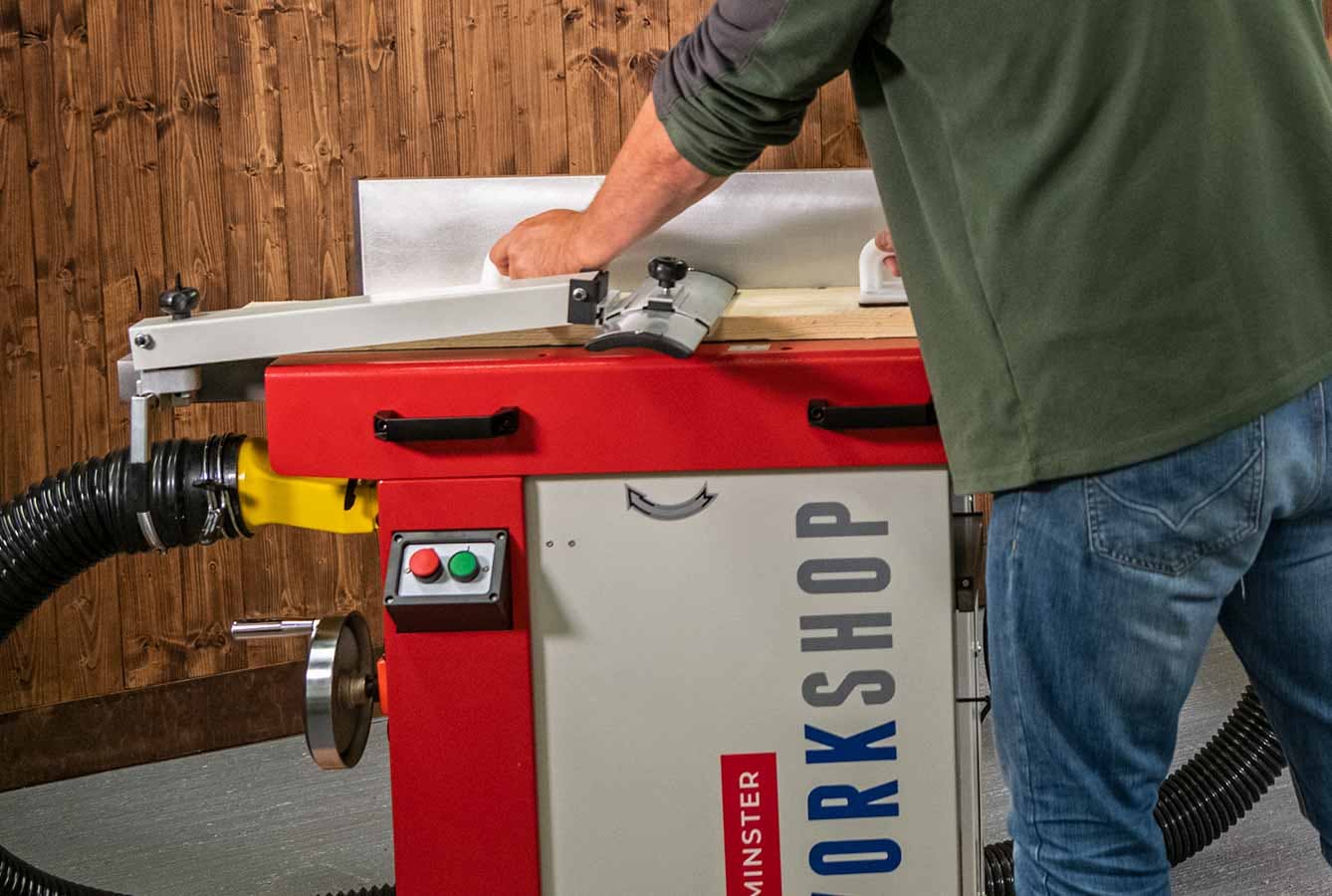

1500W Motor
Ample power, yet still runs on a normal 13 amp plug.

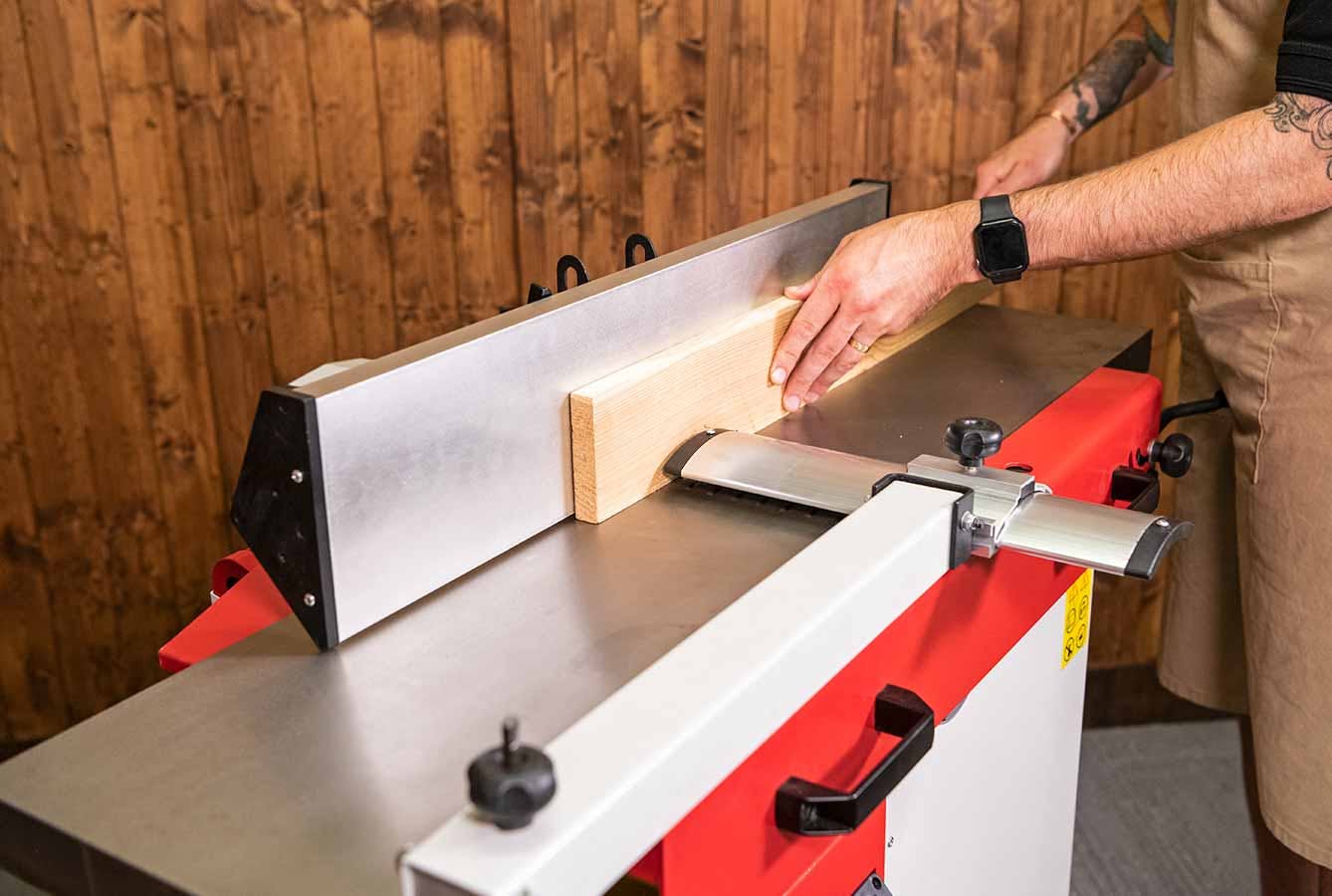

Alloy Fence
A tilting alloy fence with a sturdy cast iron support arm provides accuracy and durability.

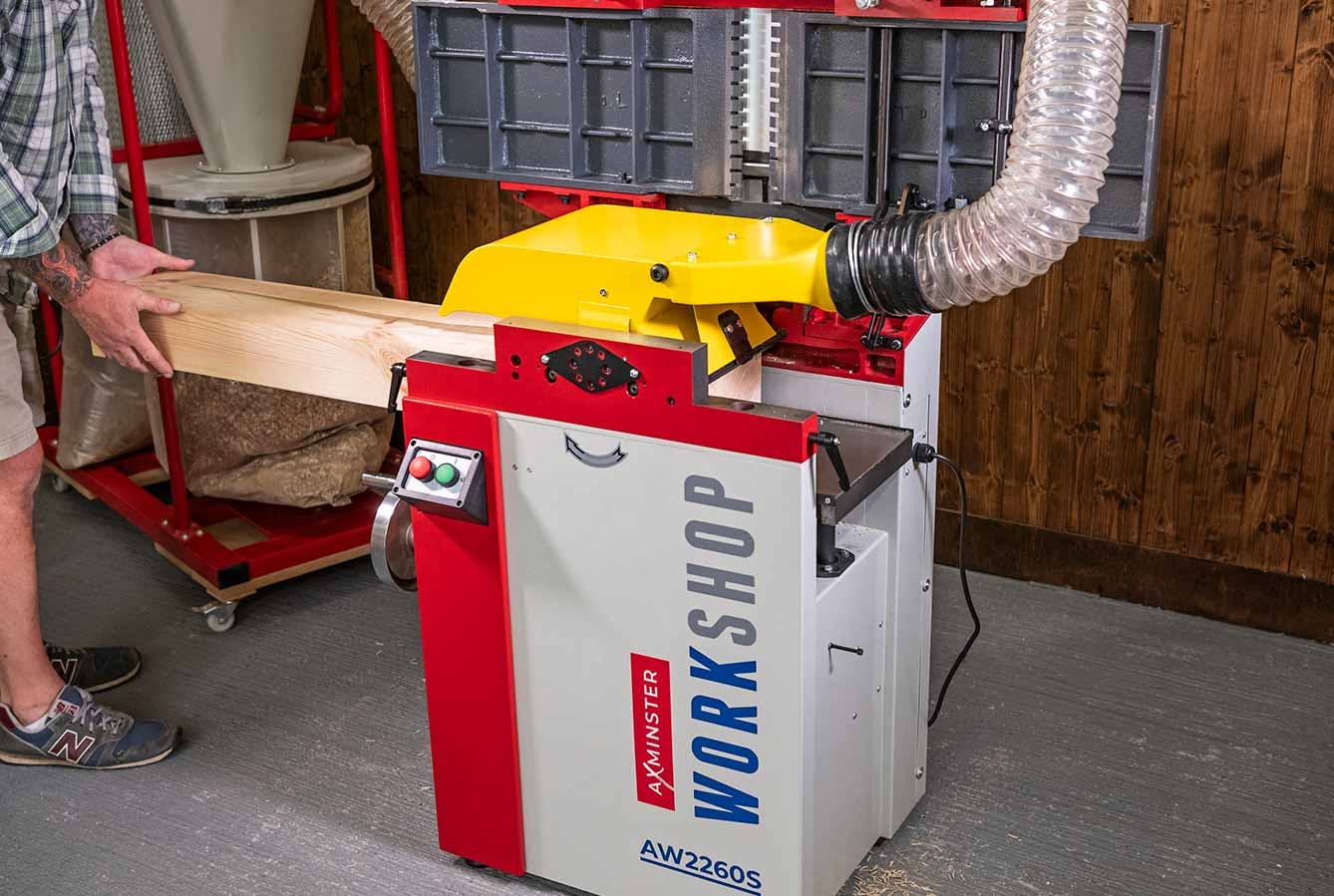

Great Capacity
The AW2260S has a maximum cutting width of 250mm and height of 180mm, allowing you to tackle big home projects.
Recommended Accessories
Frequently Bought Together
The AW2260S planer thicknesser with its spiral cutter block is a pleasure to use and delivers excellent results. The spiral cutting block has twenty four, four sided, solid carbide cutters arranged in a helix. The shear cutting action produces a silky smooth finish. There is a complete lack of planing ripple as often found using traditional straight knives. Each cutter’s edge will last around 10-20 times longer than a HSS knife and each cutter has four edges. When a cutter does become dull, take the torx driver supplied and turn the cutter through 90°, retighten the screw and you're ready to go again. Down time is a bare minimum, no resetting or waiting for the blades to come back from the sharpening. Spiral cutter blocks are notably quieter in use and produce noticeably less vibration. Extraction is more efficient due to the size and even shape of the waste produced.
When surface planing, a long rigid alloy fence supports your work. The fence is easily adjustable with stops for 90° and 45°. Changing from surfacing to thicknessing is very simple. You don’t need to remove or change the position of the fence when you lift the table. The single lift table mechanism works well, spring supported it requires little effort. There is a power feed engagement lever for use when thicknessing; the 4.8m/min feed speed ensures a smooth, even finish. The AW2260S is fitted with a digital thicknessing gauge, greatly simplifying depth adjustment.
N.B. Workshop machines used in a business education environment will be subject to a 1 year warranty.

Axminster Workshop 3 Year Guarantee
It's probably the most comprehensive free guarantee ever - look for the icon and put your trust in Axminster. So sure are we of the quality, we cover all parts and labour free of charge for three years.
Machine Classification
These products are designed and intended to be used in the Home Workshop for light work and not continuous use. They must be maintained and serviced in line with our schedule. Guarantee is void when used for business or educational purposes.
Cutterblock Diameter | 75 mm |
---|---|
Cutterblock Speed | 4,000 rpm |
Dust Extraction Outlet | 100 mm |
EAN Barcode | 5052511127443 |
Feed Speed | 4.8 m/min |
Knives | TC Spur Cutters x 24 |
Length of Table | 1,050 mm |
Max Depth of Cut Planer | 3.0 mm |
Max Depth of Cut Thicknesser | 3.0 mm |
Max Planing Width | 250 mm |
Max Thicknessing Height | 180 mm |
Min Extraction Airflow Required | 1,500 m³/hr |
Min Thicknessing Height | 5.0 mm |
Model | AW2260S |
Nett Weight | 170 kg |
Overall L x W x H | 1,120 mm x 970 mm x 1,020 mm |
Plug Fitted | UK 3 pin plug |
Power | 1.5 kW |
Rating | Home Workshop |
Sound Pressure Level LpA [Uncertainty K] | 87 dB(A) [3.0 dB] |
Voltage | 230 V |
