UJK Portable Trim Router Table
UJK Portable Trim Router Table
Key Features
- Benchtop accuracy and versatility for compact 1/4" routers
- Perfect for small runs of mouldings and fine routing
- Fully functional and portable with a small footprint
- Made from strong and stable phenolic board
- Fence and table T-slots compatible with UJK T-slot bolts
- Full fitting instructions included
- Made in Britain
- View full description
Customers Also Viewed
The UJK Portable Trim Router Table gives you a stable base to work with, wherever you are
*Designed for use with ¼” palm routers

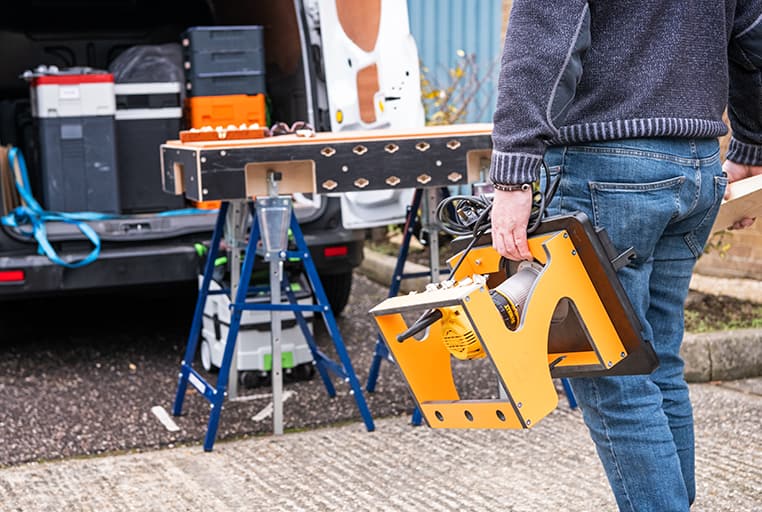

Compact and portable
Weighing less than 7kg total, this table is completely portable and can be easily taken with you to different environments. Its compact size allows for easy storage, even in small workshops.
Simple to fit your router
Easy router access, featuring a recess under the table for maximum cutter projection.
* Your router must have a base no larger than 152mm in diameter and be no taller than 250mm.
Manufactured to last
The top and legs of this compact table are crafted from strong, durable phenolic board, to ensure your projects are kept perfectly flat and stable.
Safe
The table has an adjustable fence with a safety shield and tapered dust extraction outlet, accommodating different extractor brands.
Secure
The front rail provides the ability to clamp to your workbench or other surface. You can also clamp to your multifunction table using dogs, ensuring your workstation is completely secure.
Made in Britain
The UJK Compact Multifunction Workbench is made entirely in Britain, with many compatible accessories designed and produced here in Axminster, Devon.
Recommended Accessories
-
-
-
-
-
Axcaliber 12 Piece 1/4" (6.35mm) Long Shank Cutter SetSpecial Price £74.98 £62.48 was £89.98 £74.98 Save £15.00 £12.50 -
-
-
-
-
-
-
Frequently Bought Together
The UJK Portable Trim Router Table is specifically designed for use with the increasingly popular 1/4" palm type routers. This table and fence offers you all the accuracy and versatility of a large full size router table, but on a smaller scale; providing a portable, benchtop format.
The table top is made from 20mm thick phenolic board, an extremely stable, durable and strong material; perfect for this application (the legs are 16mm phenolic board). The table top is 400mm wide x 300mm.The aperture in the table is 40mm diameter. The top features a machined T-slot for a mitre fence etc. The slot is fully compatible with UJK M6 or M8 T-slot bolts.
The 400mm x 55mm tall fence is adjustable front to back. The aperture in the fence is 50mm x 28mm high. The fence also has a machined T-slot for mounting stops etc. The fence includes a safety shield and the extraction outlet has a slight taper, which ensures a good fit for hoses or adaptors from different brands of extractor.
On the base; the front rail has three 20mm dog holes for attaching the table to a multifunction workbench using bench dogs. The front rail is designed to allow the use of F or G clamps for attaching the table to a worktop or bench. The back rail features five 1/4" holes for cutter storage.
Will my router fit? The criteria being; the router must have a base no larger than 152mm in diameter and be no taller than 250mm. The 152mm recess is cut into the underside of the top to a depth of 10mm, minimising any potential loss of depth of cut. To fit your router, use the router’s base as a template to mark and drill fixing holes. Alternatively photocopy the router base or make a template from thin card. Full details are covered in the instructions.
