Axminster Professional AP794WL Woodturning Lathe

113332

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Axminster Professional AP794WL Woodturning Lathe

View more images

Axminster Professional AP794WL Woodturning Lathe

113332

From £3,199.98 £2,666.65

In Stock - Ready to dispatch

Qty

£70 Large Delivery within 3 to 5 working days*.

Easy Returns within 30 days.

*UK Mainland only. Additional charges may apply for remote or offshore areas.

Click & Collect in-store

For Business, Pay in 3 monthly instalments interest-free*

Key Features

The largest lathe in the range
Heavy, cast iron construction for reduced vibration
Motorised sliding bed system for increased capacity
Electronic speed control across three ranges for precise adjustment
2.2kW motor for powerful performance
36 division spindle indexing
M33 x 3.5mm (ASR) safety spindle
Integrated tailstock storage to keep essentials to hand
View full description

A lathe with endless possibilities

The largest model in the range, the Axminster Professional AP794WL Woodturning Lathe is for turners who need exceptional capacity. Bridging the gap between traditional long bed lathes and specialist large diameter machines, it features a unique motorised sliding bed, offering excellent flexibility for a wide variety of applications.

Buy with confidence

Look for the icon and put your trust in Axminster Tools. You’ll get our comprehensive 3 Year Guarantee. Find out more

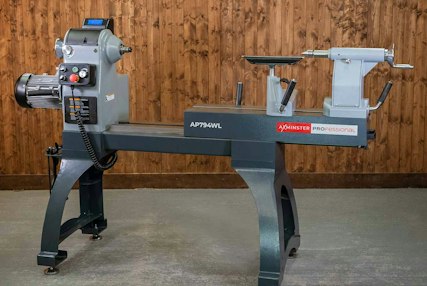

Heavy cast iron construction

The cast iron construction ensures stability and with 248kg of mass, vibration is reduced for smooth, controlled results, even when working with large or unbalanced timber.

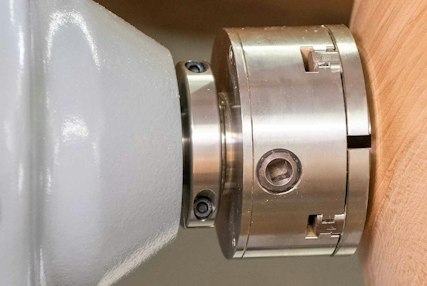

M33 x 3.5mm ASR safety spindle

The M33 x 3.5mm ASR safety spindle allows the work to be held safely if using the lathe in reverse.

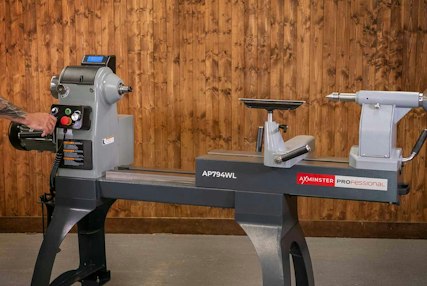

Motorised sliding bed

At the touch of a switch, the upper bed moves away from the headstock, extending centre capacity to 1,016 mm. No manual lifting is needed, allowing seamless transitions between compact setups for small bowls and extended configurations for spindle work.

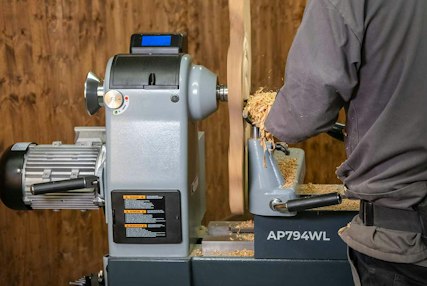

Impressive swing capacity

As the sliding bed moves, the swing capacity increases to 793mm, making the lathe excellent for unusual sized forms, without the need for outboard attachments. In addition, 36-position indexing supports decorative and segmented turning.

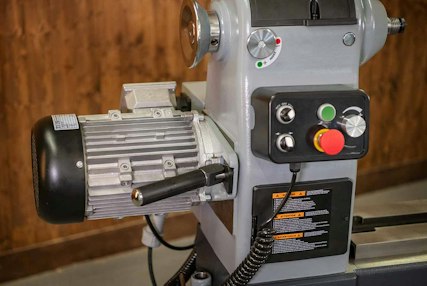

Powerful motor

A high torque 2.2kW motor delivers consistent torque and power for larger, demanding projects.

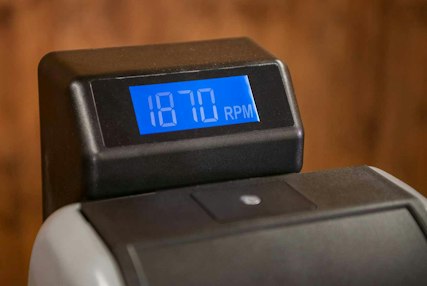

Electronic variable speed

Benefit from three variable speed ranges: 20 - 650, 50 - 1,750, and 100 - 3,850 RPM, for smooth, precise control. The digital speed readout makes it easy to stay in control.

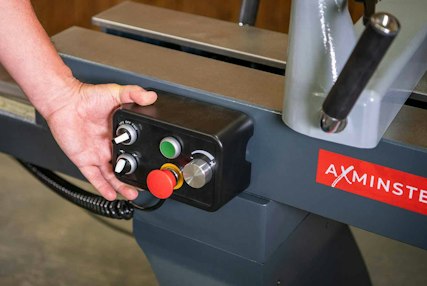

Magnetic switch box

The magnetic switch box allows you to position the switches in the most convenient position for you for more control.

Supplied with various accessories

Includes a range of accessories for greater versatility: 150 and 300mm tool rests, a 100mm tool rest height extension, 75mm faceplate and a set of four adjustable feet.

Get the best out of your AP794WL Woodturning Lathe

Not sure which machine is right for your task?

Explore our machinery classification page to compare classification options and ensure you select the best machine for your needs.

Discover more

Return to top

In Detail

The Axminster Professional AP794WL Woodturning Lathe is the largest model in the range, designed for turners who demand exceptional versatility, precision, and capacity. Bridging the gap between traditional long bed lathes and specialist large diameter machines, it offers outstanding flexibility for a wide variety of turning applications.

Its heavy cast iron construction provides 248 kg of mass, ensuring excellent stability and minimising vibration for smooth, controlled results, even when working with large or unbalanced timber.

At the heart of the lathe is a motorised sliding bed system, a feature unique within the range. At the touch of a switch, the upper bed moves smoothly away from the headstock, increasing the between centres capacity from 508 mm to 1,016 mm. This eliminates the need for manual lifting or repositioning, allowing seamless transitions between compact setups for bowl turning and extended configurations for long spindle work.

The sliding bed does more than extend length. As it moves, it also increases the turning capacity across the lower bed, expanding the swing from 590 mm to 793 mm. This makes the lathe ideal for large bowls, platters, and more unusual forms, while maintaining excellent tool access and stability, without the need for outboard attachments. In addition, 36-position indexing supports decorative and segmented turning.

A powerful 3 HP (2.2 kW) inverter driven motor delivers consistent torque across the full speed range, including at low speeds, ensuring smooth performance in all conditions. Electronic variable speed control, combined with three belt stages, allows precise adjustment for both delicate work and larger, out-of-balance pieces. Speed ranges include 20–650, 50–1,750, and 100–3,850 rpm, with a digital RPM display for accurate, repeatable settings.

For added convenience, the magnetic control unit can be positioned anywhere on the lathe bed or headstock. It features clearly arranged on/off buttons, a speed control dial, and a forward/reverse switch, allowing easy operation from wherever you are working.

The extra wide cast iron banjo and tool rest system provides excellent support, even when using larger tools. Precision ground MT2 tapers in both the headstock and tailstock ensure compatibility with a wide range of accessories.

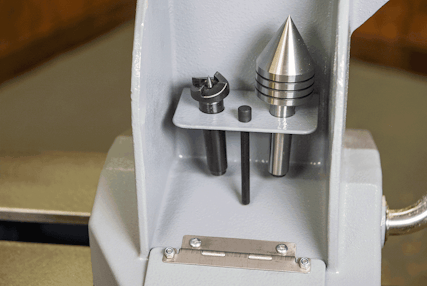

Integrated tailstock storage keeps essential tools close at hand, helping maintain an efficient and organised workspace.

The lathe features an M33 x 3.5 mm ASR spindle, compatible with all standard M33 x 3.5 mm threaded chucks and accessories. The ASR system includes a safety groove, designed for use with compatible fittings and a locking ring to ensure secure operation in reverse. This feature is optional for general turning.

Supplied with a 100 mm tool rest height extension, a set of four adjustable feet, 150 mm and 300 mm tool rests, and a 75 mm faceplate.

Please note, if you require an EU plug, please ensure you purchase 113776

Axminster Professional 3 Year Guarantee

Specification

More Information
Distance Between Centres	508 - 1,016 mm
EAN Barcode	5052511142453
Headstock Taper	2 MT
Lathe Speed	20 - 650 / 50 - 1,750 / 100 - 3,850 rpm
Max Diameter over Bed	590 - 794 mm
Model	AP794WL
Nett Weight	248 kg
Overall L x W x H	1700 - 500 x 700 x 1300 mm
Power	2.2 kW
Rating	Frequent Use
Spindle Thread	M33 x 3.5 mm (ASR)
Tailstock Ram Travel	120 mm
Tailstock Taper	2 MT
Tool Post Diameter	25.4 mm (1")
Voltage	230 V
