Axminster Trade Clamps Ductile Cast F Clamp
Customers Also Bought

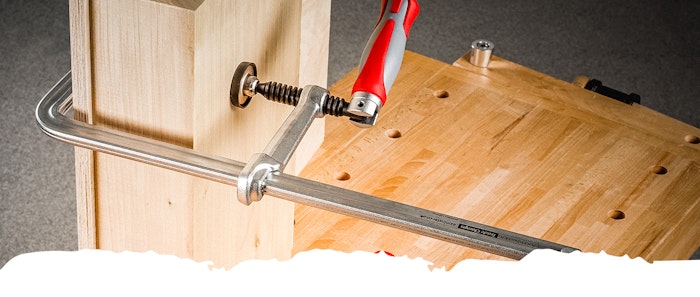

The classic go-to gluing clamp gives excellent force transfer whilst staying strong and rigid. Both the fixed and sliding arms are made of high-grade, powder coated and virtually unbreakable ductile cast iron. They fit onto a passivated chrome finished, cold drawn steel bar with serrated edges that engage securely with the non-slip mechanism of the sliding arm. The sliding arm is nodular graphite cast iron with a wooden handle.
These Axminster Trade F clamps come fitted with hardened Acme threads for quick adjustment and high load capacity. Both jaws feature glue resistant, plastic caps to protect your work. The swivelling pad allows for clamping slightly tapered pieces and the top protector has a V groove to help clamp round objects. Workshops can get damp from time to time, this is why all Axminster Trade Clamps are passivated chrome finished to aid against corrosion. A traditional wooden handle allows maximum pressure to be applied easily.
These clamps come with a Lifetime Guarantee, should they fail at any time due to a material or manufacturing defect we will replace them free of charge.
100 mm & 200 mm x 50 mm – 150kg max clamping pressure
120 mm x 60 mm – 200kg max clamping pressure
160 mm x 80 mm – 270kg max clamping pressure
200 mm & 400 mm x 100 mm – 400kg max clamping pressure
300 mm x 140 mm – 550kg max clamping pressure
600 mm x 175 mm – 500kg max clamping pressure
- Traditional style, modern construction
- Hollow ground, cold drawn steel rail with serrated edges
- Plastic protection caps protect your work
- Ductile iron arms
- Square rolled Acme threads
